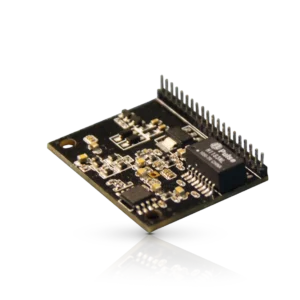

WisLink PLC LX200V30 – Powerline-Kommunikationsmodul
Artikelnummer: 500001 35,00 €exkl. 19 % MwSt.
plus Versandkosten
Wir sind noch nicht gestartet. Der Shop kommt in Kürze.

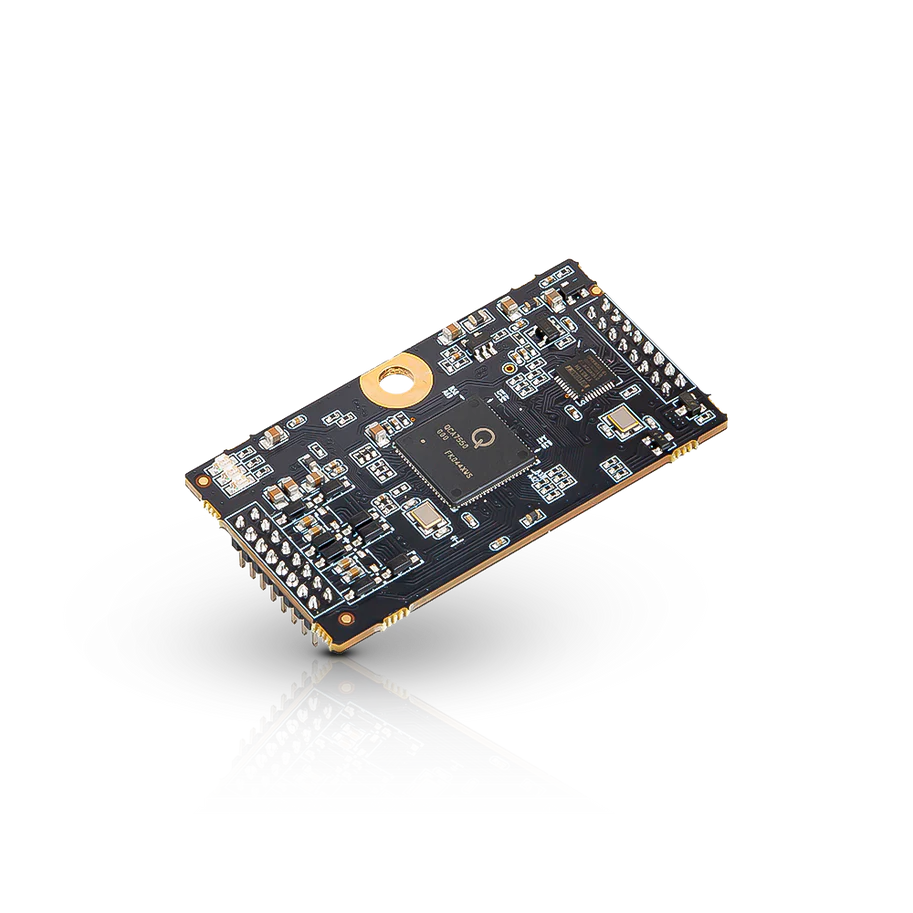

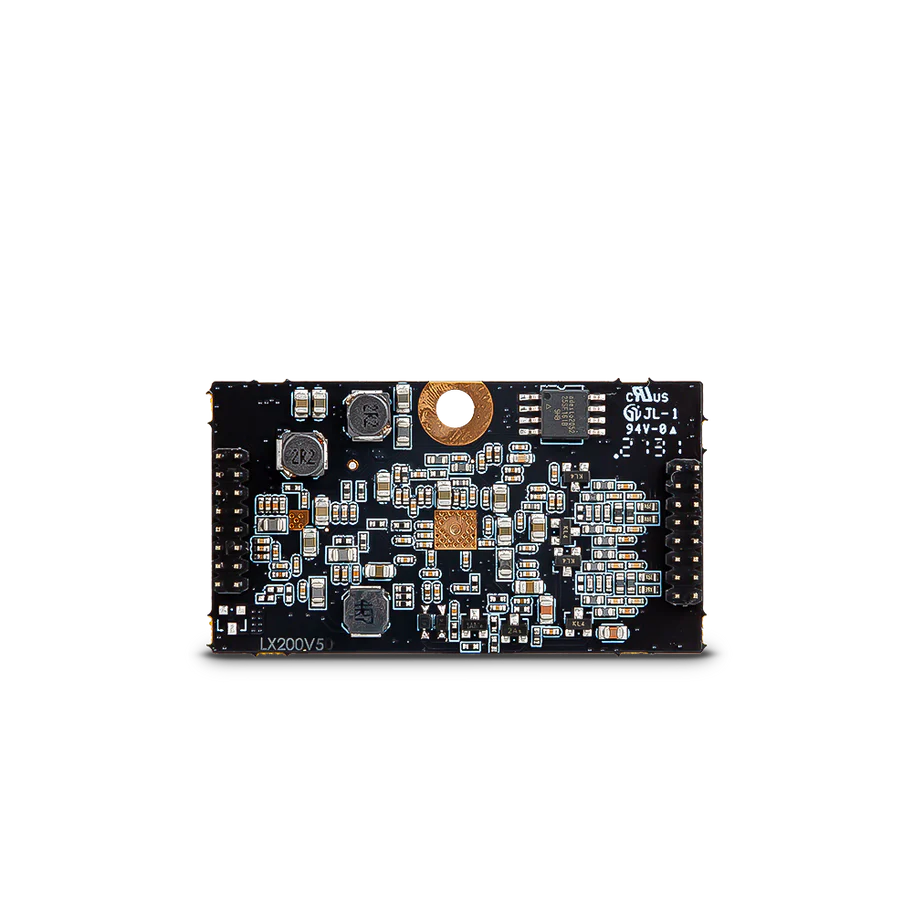

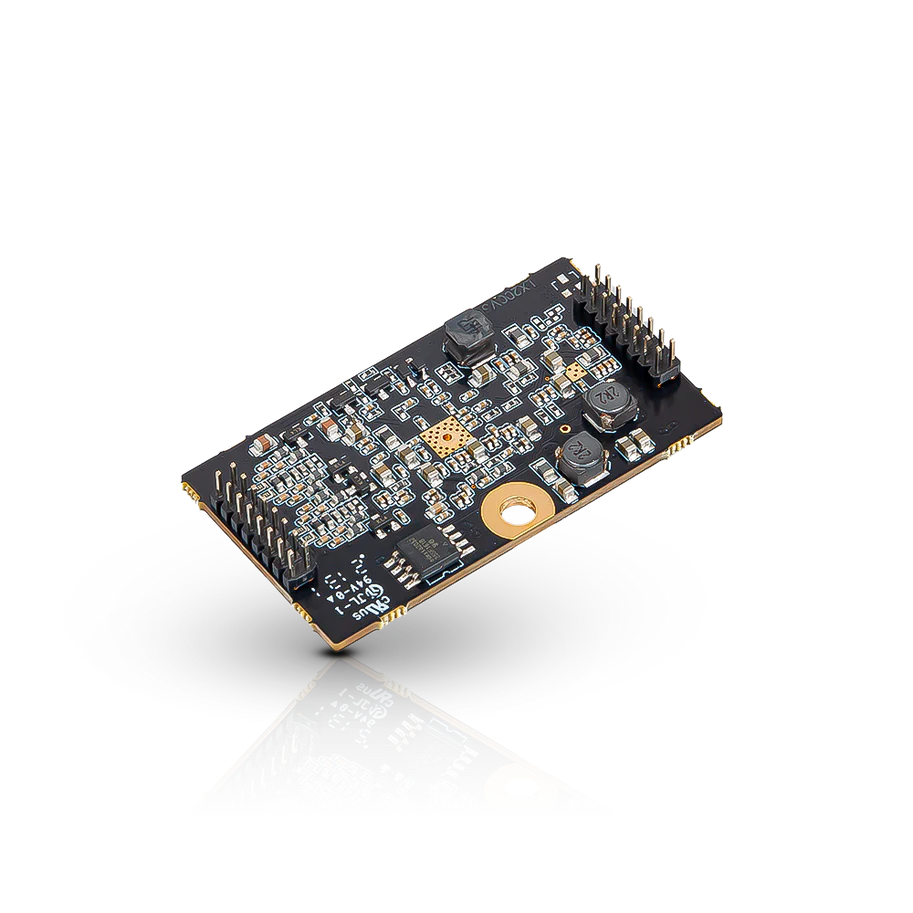

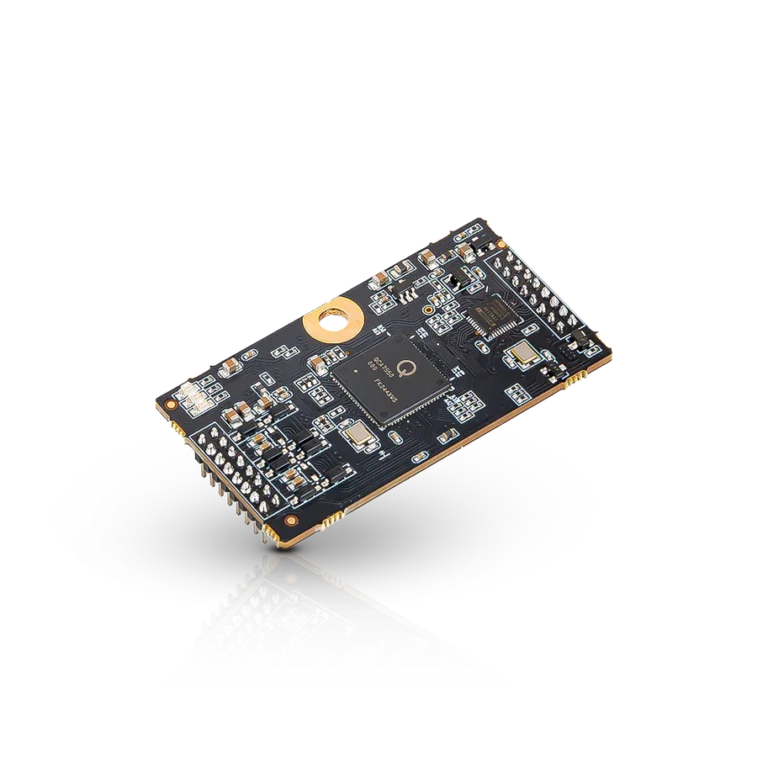

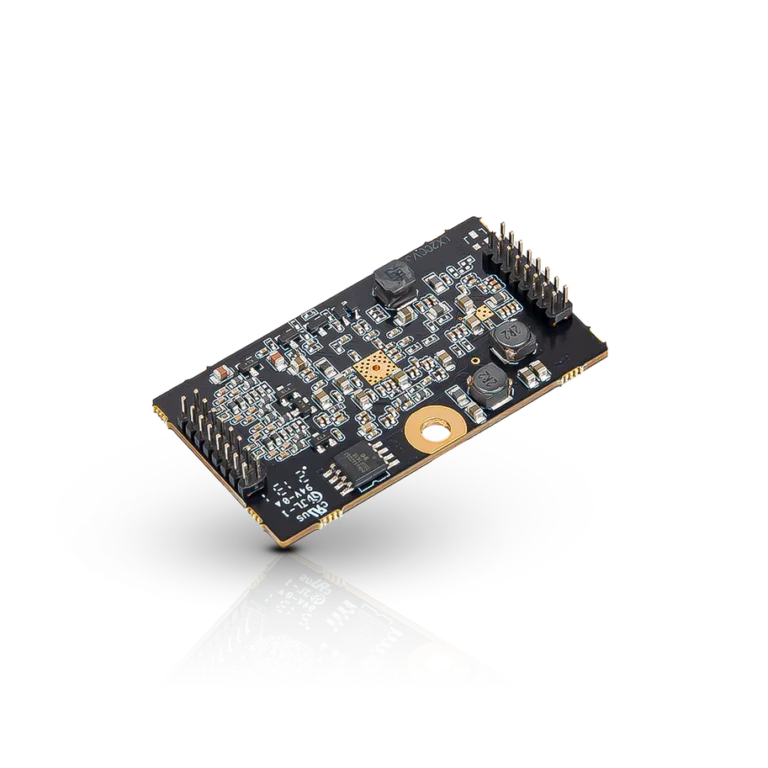

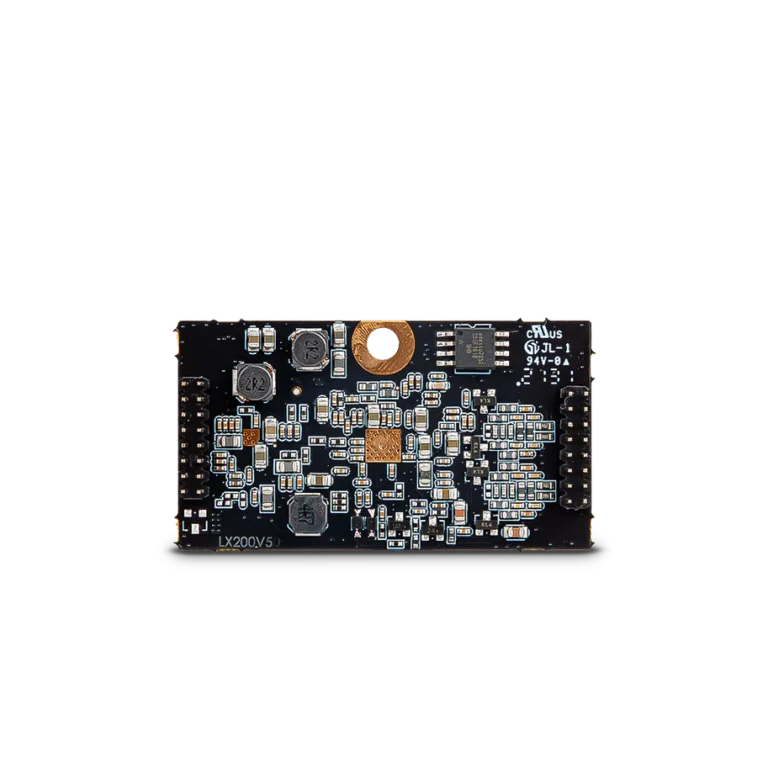

WisLink PLC LX200V50 – Powerline-Kommunikationsmodul (PLC)
High-performance PLC module with Qualcomm QCA7550 SoC, 1000 Mbps data rate, 128-bit AES encryption, and HomePlug AV2 support. Ideal for demanding multimedia transmissions over the power grid.
59,00 €
exkl. 19 % MwSt. plus Versandkosten
Beschreibung
Technische Daten
The WisLink PLC LX200V50 is a state-of-the-art powerline communication module based on the Qualcomm QCA7550 SoC . It is designed to efficiently transmit Ethernet content over the electrical grid to an Ethernet 802.3 network—without any user configuration.
With a maximum physical data rate of 1000 Mbps, this module is ideal for data-intensive applications such as HD streaming, smart home networks, or industrial IoT applications. The integrated MAC layer manages network access and data streams to optimize the quality of service (QoS) in the powerline network.
The module offers 128-bit AES encryption , various HomePlug® AV2 profiles (MIMO & SISO), and supports modern OFDM modulations up to 4096-QAM. It also supports MIMO with beamforming , enhanced error correction (Turbo Code FEC), automatic channel adaptation, and IGMP multicast management.
Up to 8 modules can be networked together. Additionally, the IEEE 1901 , IEEE 1905.1 , and HomePlug AV standards are fully met.
Easy to integrate – powerful and ready to use.
| Technisches Merkmal | Details |
|---|---|
| Modell | WisLink PLC LX200V50 |
| SoC | Qualcomm QCA7550 |
| Maximale Datenrate | 1000 Mbps |
| Verschlüsselung | 128-bit AES Link Encryption mit Schlüsselmanagement |
| Anzahl vernetzbarer Module | Bis zu 8 |
| Speicher | 16 MB DDR2 |
| Modulationsverfahren | OFDM: 4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO, HS-ROBO, Mini-ROBO |
| MIMO Unterstützung | Line-Neutral / Line-Ground 2×2 MIMO mit Beamforming |
| Frequenzbereich | Bis zu 67 MHz (unterhalb CATV-Störbereich) |
| Fehlerkorrektur | Turbo Code FEC, Decoder-Raten: 1/2, 16/21, 8/9 |
| MAC-Schicht | HomePlug AV2 konform, prioritätsbasiertes CSMA/CA, IGMP Multicast Support |
| QoS-Funktionen | Integrierte Hardware-Paketklassifizierer für ToS, CoS, IP-Port |
| Stromsparmodus | Unterstützt |
| Standards | IEEE 1901, IEEE 1905.1, HomePlug AV, HomePlug AV2 |
| OFDM-Technik | Windowed OFDM mit Rauschunterdrückung und Kanalanpassung |
