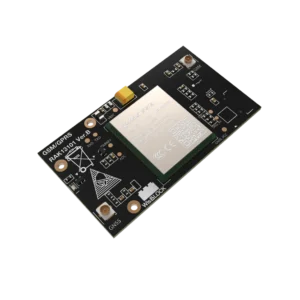

GSM Quectel MC20CE – RAK13101
Artikelnummer: 110050 30,00 €exkl. 19 % MwSt.
plus Versandkosten
Wir sind noch nicht gestartet. Der Shop kommt in Kürze.

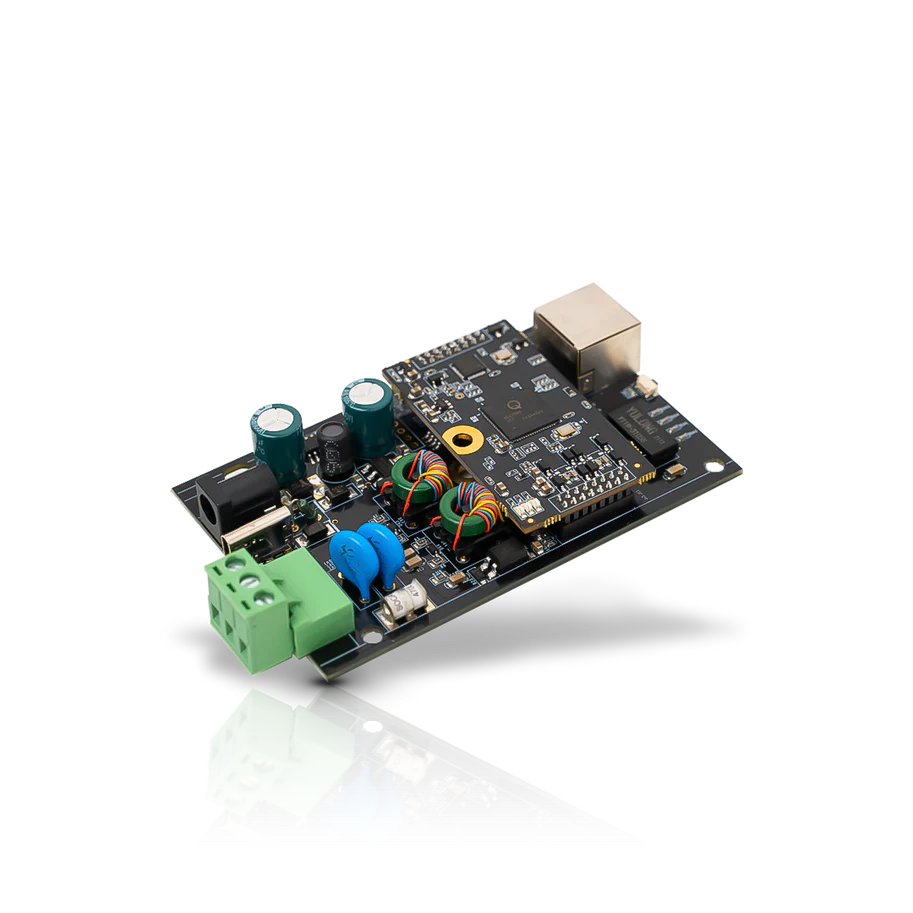

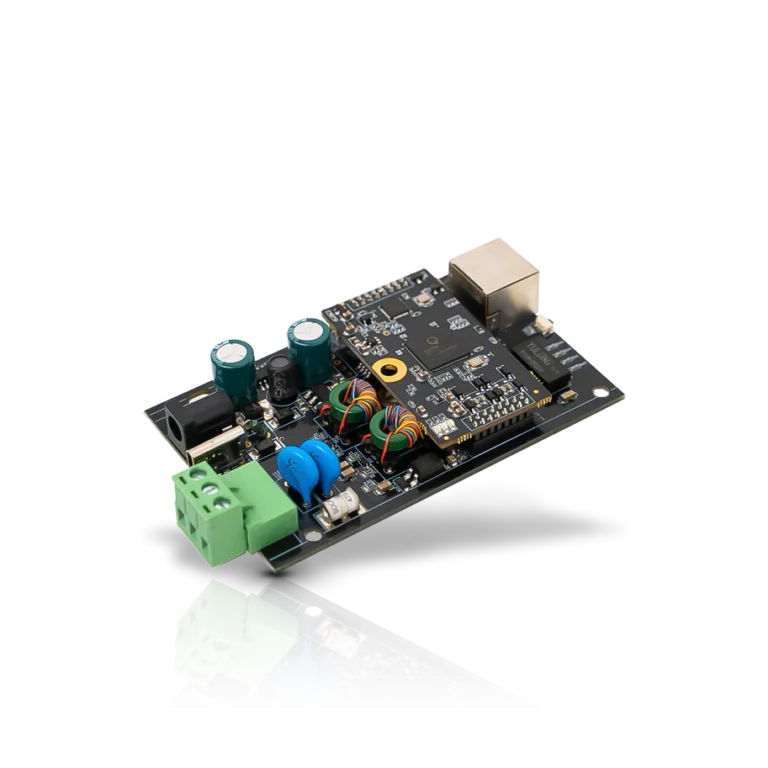

WisLink PLC LX200V50 EVB – Powerline-Kommunikations-Evaluierungsboard
High-performance evaluation board for powerline communication with the Qualcomm QCA7550 SoC, 1000 Mbps physical data rate, 128-bit AES encryption, and flexible power supply options. Perfect for PLC testing, development, and research.
99,00 €
exkl. 19 % MwSt. plus Versandkosten
Beschreibung
Technische Daten
The WisLink PLC LX200V50 EVB is a professional powerline communication evaluation board based on the Qualcomm QCA7550 SoC . It is used to transmit multi-stream Ethernet content over the electrical grid into an Ethernet 802.3 network. The PLC module’s specialized MAC unit manages network ingress and service streams, ensuring the highest quality of service (QoS).
With a maximum data rate of 1000 Mbps, this EVB is ideal for research, product development, and functional testing in demanding network environments. It requires no user configuration—plug and play.
It offers two power options : USB Type-C or a power adapter port (barrel jack) . It also features an RJ45 Ethernet port and a Powerline port.
The board is fully HomePlug® AV2 compliant , supports MIMO and SISO profiles up to 67 MHz , uses advanced OFDM modulation techniques (up to 4096-QAM) and offers features such as MIMO with beamforming , error correction (Turbo FEC) , channel-based adaptation , 128-bit AES encryption , as well as full QoS and IGMP functions .
| Technisches Merkmal | Details |
|---|---|
| Modell | WisLink PLC LX200V50 EVB |
| SoC | Qualcomm QCA7550 |
| Max. Datenrate | 1000 Mbps (physikalische Schicht) |
| Verschlüsselung | 128-bit AES mit Schlüsselverwaltung |
| Power-Optionen | USB Typ-C oder DC-Hohlstecker (Barrel Jack) |
| Netzwerkschnittstellen | RJ45 Ethernet, Powerline-Anschluss |
| Speicher | 16 MB DDR2 intern |
| HomePlug® AV2 Konformität | AV2 30 MHz & 67 MHz MIMO/SISO Profile, Koexistenz mit HomePlug 1.0 |
| Modulation | OFDM: 4096–8 QAM, QPSK, BPSK, ROBO, HS-ROBO, Mini-ROBO |
| MIMO-Unterstützung | 2×2 Line-Neutral / Line-Ground mit Beamforming |
| Fehlerkorrektur | Turbo FEC, Decoder-Raten: 1/2, 16/21, 8/9 |
| OFDM-Technik | Windowed OFDM mit Rauschunterdrückung & Kanalanpassung |
| MAC-Funktionalität | HomePlug AV2 konform, prioritätsbasiertes CSMA/CA, IGMP Multicast |
| QoS-Funktionen | ToS, CoS, IP-Port basierte Hardwareklassifizierer |
| Stromsparmodus | Unterstützt |
| Standards | IEEE 1901, IEEE 1905.1, HomePlug AV, AV2 |
| Modul-Kompatibilität | Bis zu 8 Module im Netzwerk koppelbar |
