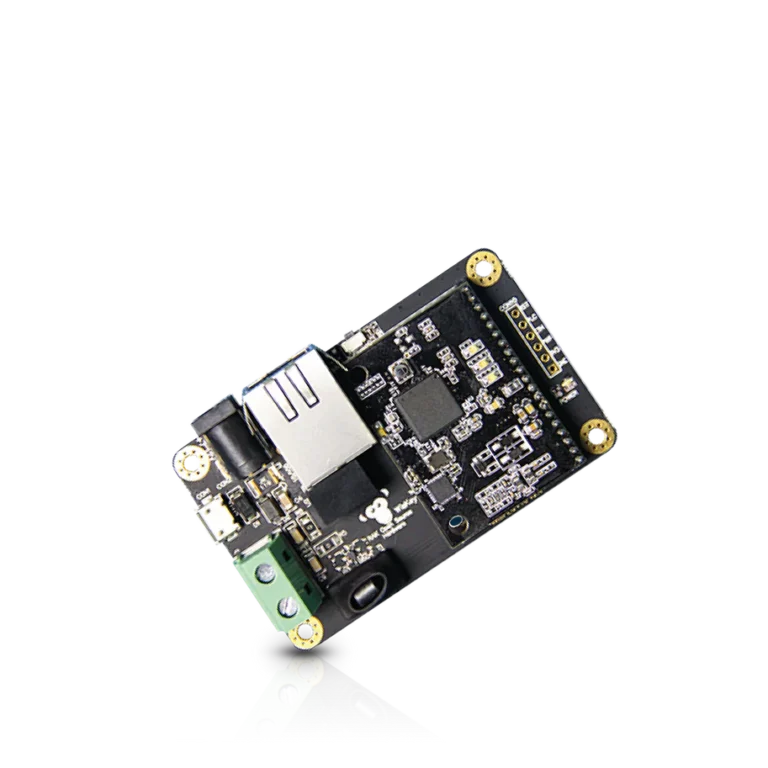

WisLink PLC LX200V30 EVB – Powerline-Kommunikationsmodul

The WisLink PLC LX200V30 EVB is an innovative PLC module based on the Qualcomm QCA7420 SoC and utilizes advanced OFDM (Orthogonal Frequency Division Multiplexing) modulation technology. It enables reliable data transmission over power lines with a maximum physical data rate of up to 500 Mbps*.

The evaluation board offers standard Ethernet ports as well as an interface for twisted pair connections, providing flexible integration options into various network infrastructures.

With a range of up to 300 meters over power lines and 600 meters over twisted pair, the module is ideal for expanding IP-based networks. Thanks to 128-bit AES encryption, data communication is secure and stable. The module is fully compliant with IEEE 1901 and HomePlug AV standards and allows for the interconnection of up to 8 modules simultaneously.

It does not affect existing CATV signals over coaxial cables in the 2–30 MHz frequency band and, thanks to its modular design, is particularly easy to integrate into existing systems.

*Note: The maximum data rate refers to the physical layer. The effective data rate at the application layer is lower.

All technical documents can be found on our documentation page.
