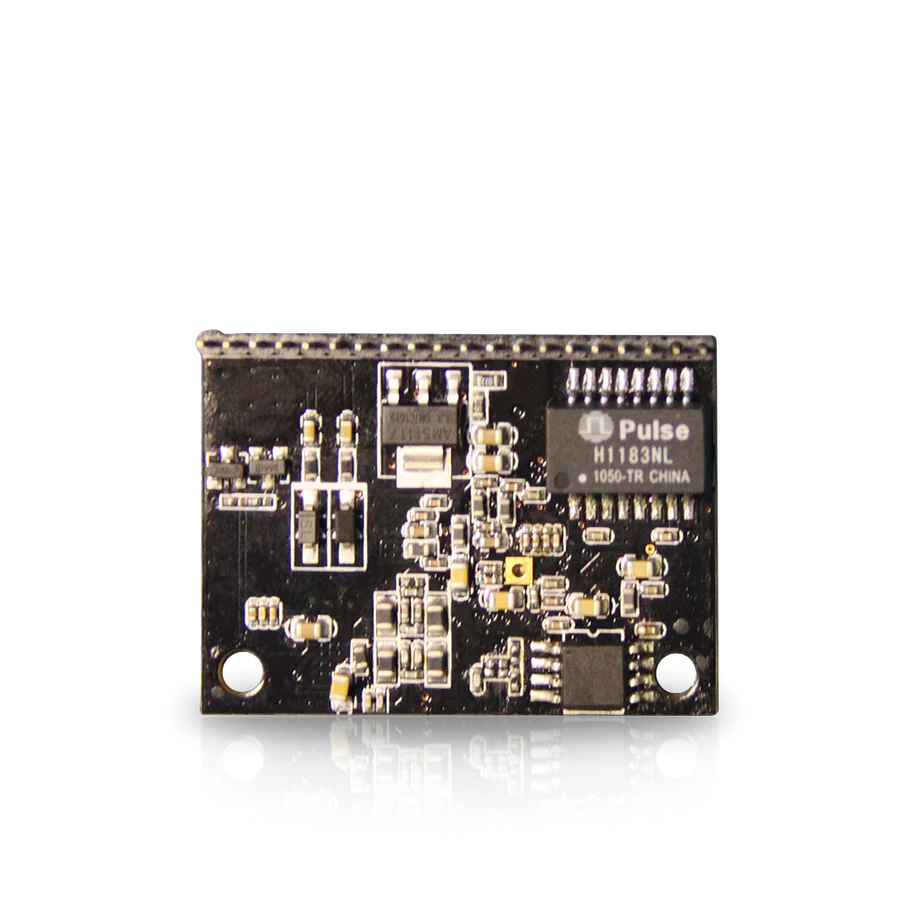

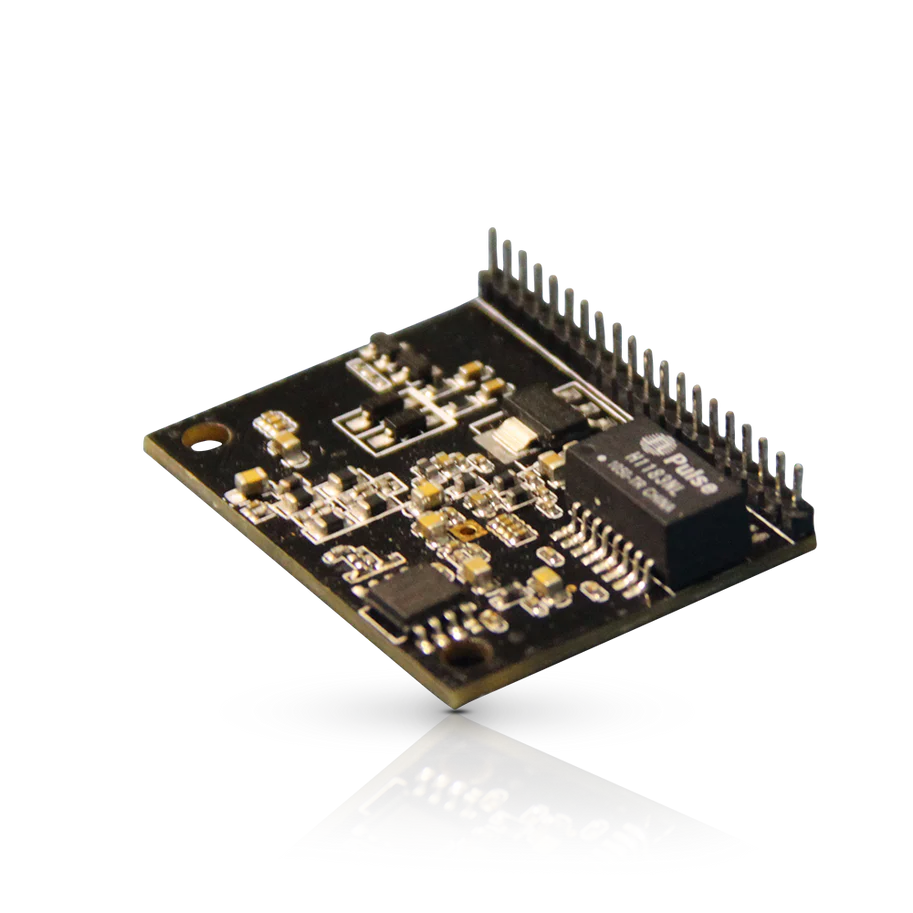

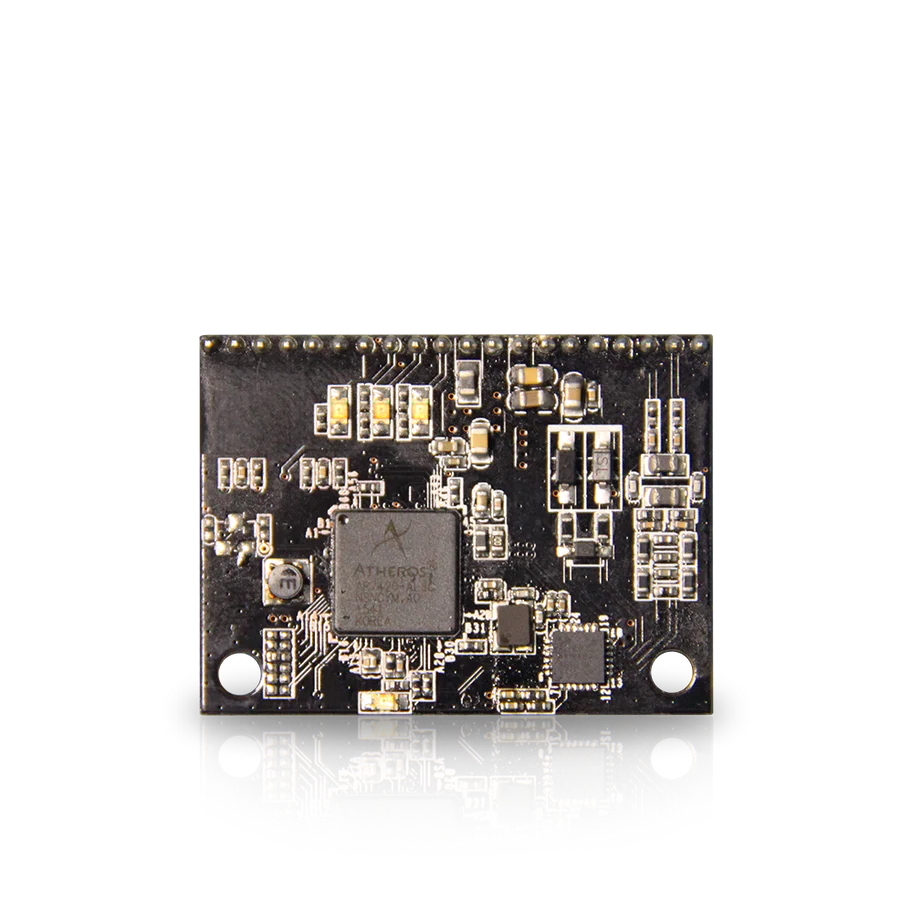

WisLink PLC LX200V30 – Power Line Communication (PLC) Module

The WisLink PLC LX200V30 is a high-performance Power Line Communication (PLC) module built on the Qualcomm QCA7420 SoC. Designed for seamless integration into embedded systems, it combines compact design with advanced features. Supporting both IEEE1901 and HomePlug AV standards, this module is suitable for industrial, smart home, and infrastructure networking applications.

It offers a maximum physical layer data rate of up to 500 Mbps* with robust 128-bit AES encryption, operating in the 2–30 MHz band to avoid interference with existing CATV signals. No configuration is required by the user—the module works automatically once wired into the system.

Up to 8 modules can interconnect simultaneously, and the integrated MII (Media Independent Interface) allows flexible deployment in a wide variety of devices. The module supports long-range communication over power lines (up to 300 m), telephone lines (up to 600 m), and coaxial cables (up to 2000 m).

Note: The maximum data rate refers to the physical transmission layer. The actual data layer speed will be lower.

Complete documentation for this product is available on our documentation portal.

📦 Packaging
Product Dimensions: 40 mm × 30 mm

Product Weight: 1 kg

Included: 1 × LX200V30 Board
