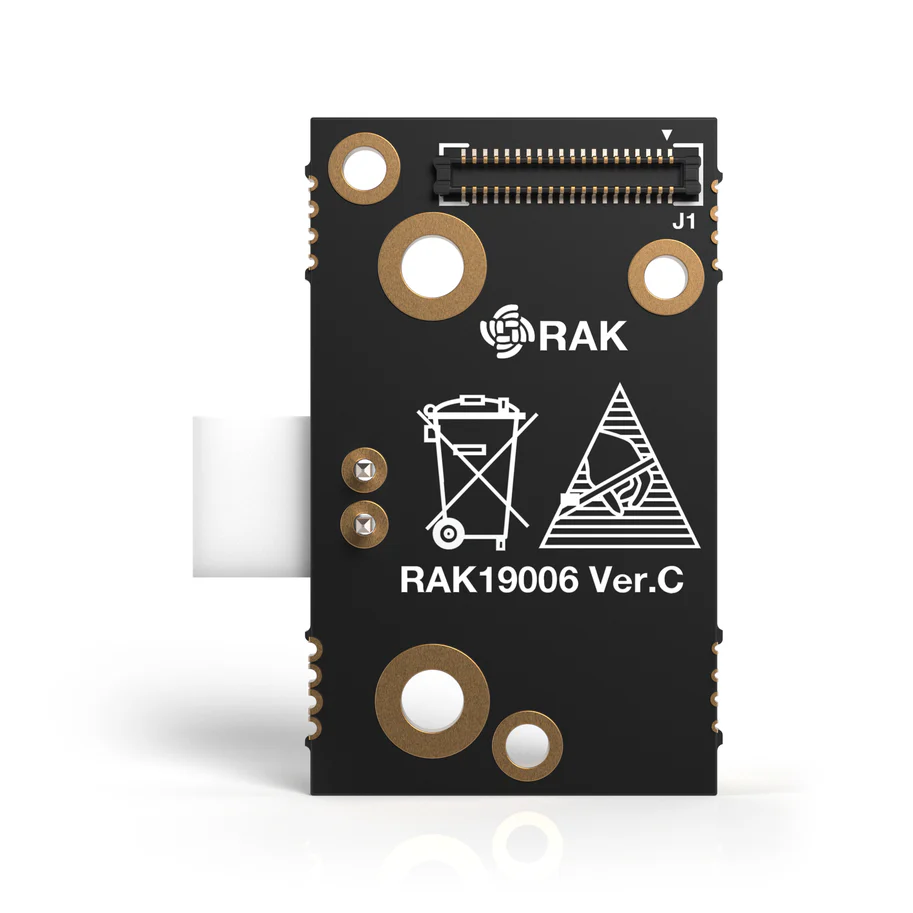

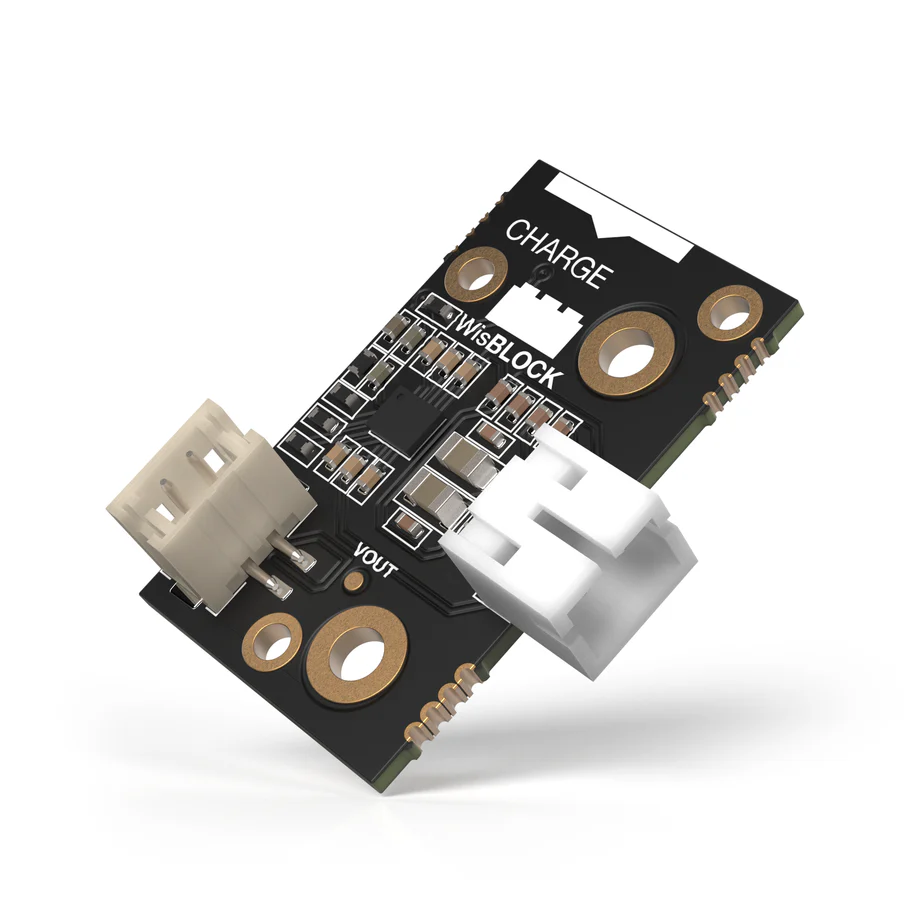

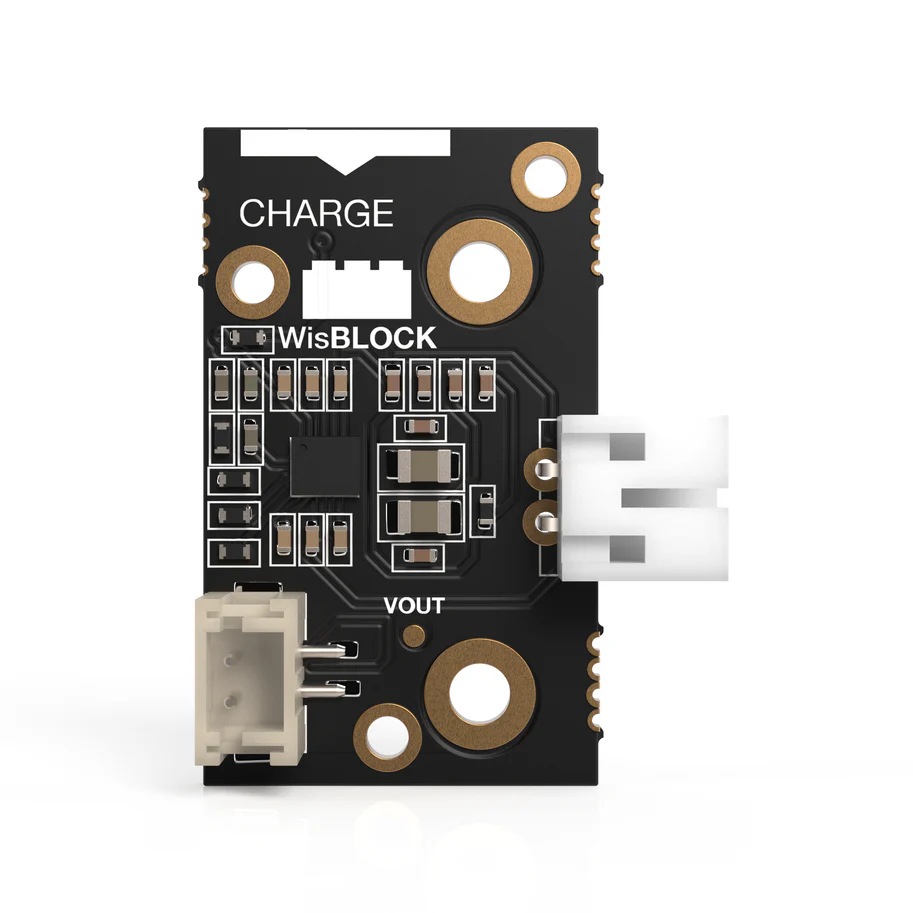

Wireless Charger Module ConvenientPower CPS3008 – RAK19006
The RAK19006 is a WisBlock Wireless Charger Module powered by the ConvenientPower CPS3008 chip. It is Qi-compliant, highly efficient, and supports both wireless and wired charging with up to 5 W output.
6,50 €
excl. 19% VAT plus Shipping Costs
Product Description
Technical Details
The RAK19006 Wireless Charger Module provides an efficient and compact solution for adding wireless charging capabilities to WisBlock projects. Built around the ConvenientPower CPS3008 chip, it combines a Qi-compliant wireless power receiver and linear charger into a single chip.
The module is WPC 1.2.4 compliant, supports JEITA-compatible charging, and can deliver up to 5 W of power. With integrated OVP (Over-Voltage Protection), OCP (Over-Current Protection), and OTP (Over-Temperature Protection), it ensures safe and reliable charging.
It can be connected to a WisBlock Base Board like the RAK19007 via the IO slot or through two pogo pin connectors. The RAK19006 supports both wireless and wired charging and features ultra-low leakage current when no transmitter is present.
Its compact 15 × 25 mm size makes it an excellent choice for space-constrained IoT applications requiring safe and efficient charging functionality.
| Specification | Details |
|---|---|
| Model | RAK19006 Wireless Charger Module |
| Chipset | ConvenientPower CPS3008 |
| Standard | Qi-compliant, WPC 1.2.4 |
| Power Output | Up to 5 W |
| Charging Modes | Wireless and Wired |
| Protections | OVP (Over-Voltage), OCP (Over-Current), OTP (Over-Temperature) |
| Special Features | Ultra-low leakage current without transmitter |
| Connection | IO slot or pogo pins (compatible with RAK19007) |
| Size | 15 × 25 mm |
