Unify Enclosure Mounting Plate – Blank for 100×75×38 mm Enclosure

The Unify Enclosure Mounting Plate – Blank is a versatile internal mounting plate for the Unify Enclosure IP67 (100×75×38 mm). It provides a flat surface for fully customizable IoT hardware mounting and space for a LiPo battery beneath the plate.

SKU: 910310

4,90 €

excl. 19% VAT plus Shipping Costs

Product Description Technical Details

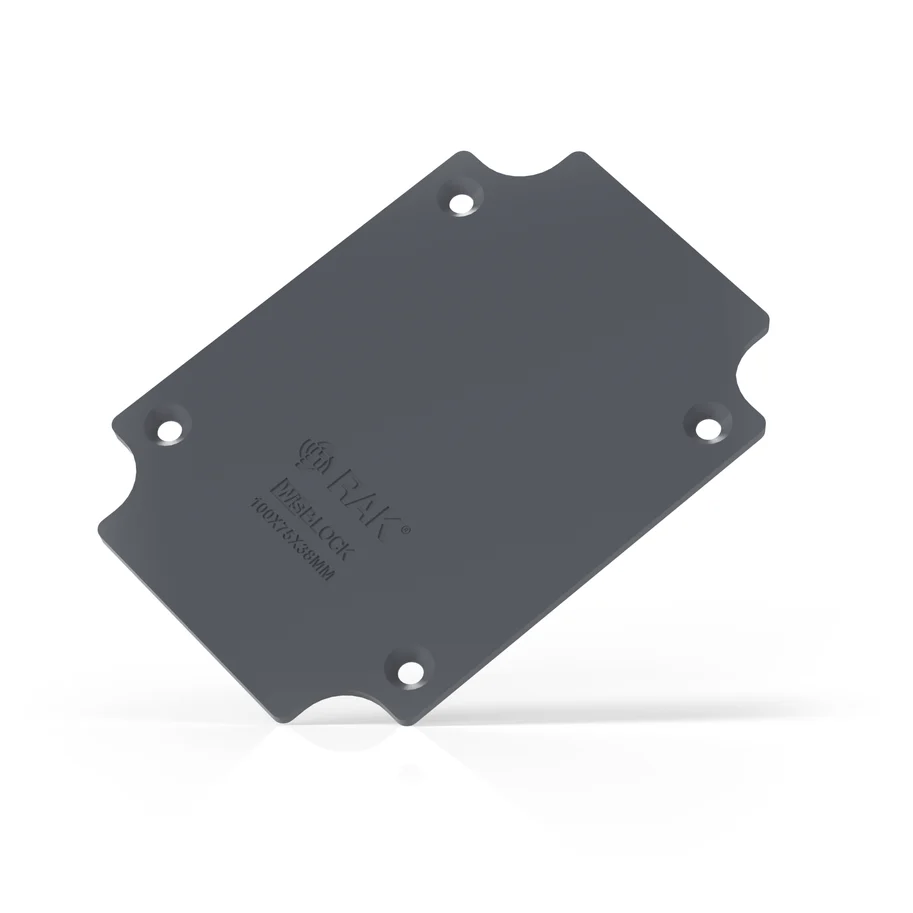

The Unify Enclosure Mounting Plate – Blank is designed specifically for the Unify Enclosure IP67 (100×75×38 mm), offering maximum flexibility for mounting your IoT devices. With its completely flat design, you can add your own mounting points or standoffs, making it suitable for a wide variety of hardware.

The plate also allows space for a flat-profile LiPo battery (approx. 55×34×6 mm) beneath it, making your IoT solution compact, reliable, and ready for outdoor use.

Constructed from ABS UL94V-0 plastic in medium gray, the plate is durable and adaptable, ensuring long-term use in demanding conditions.

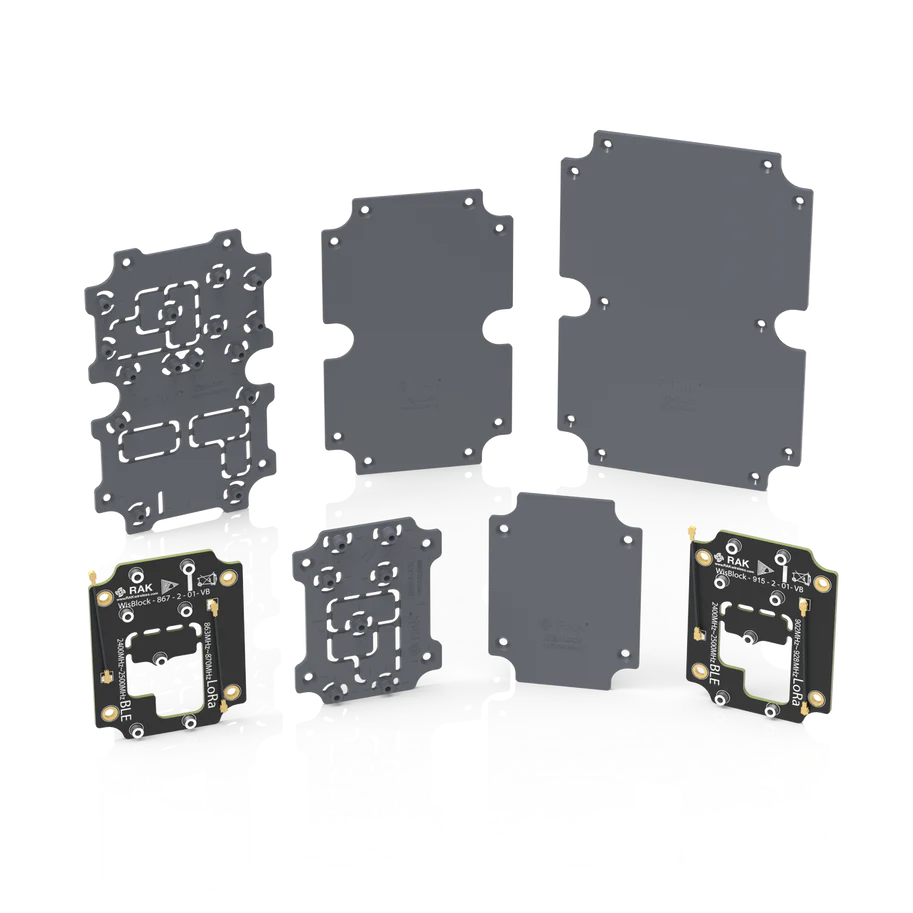

The Unify Mounting Plates are available in three versions:

  • With integrated LoRa® and BLE antennas (optimized for 868–870 MHz and 902–928 MHz)

  • With screw bosses tailored for WisBlock Base Boards

  • Blank (this version) for full customization

Specification Details
Product Unify Enclosure Mounting Plate – Blank
Compatible Enclosure Unify Enclosure IP67 100×75×38 mm
Material ABS UL94V-0
Color Medium Gray
Dimensions 88 × 63 × 2 mm
Thickness 2 mm
Battery Compartment Space beneath plate for LiPo battery (approx. 55 × 34 × 6 mm)
Available Variants With integrated LoRa® & BLE antennas
With screw bosses for WisBlock Base Boards
Blank (this version)
