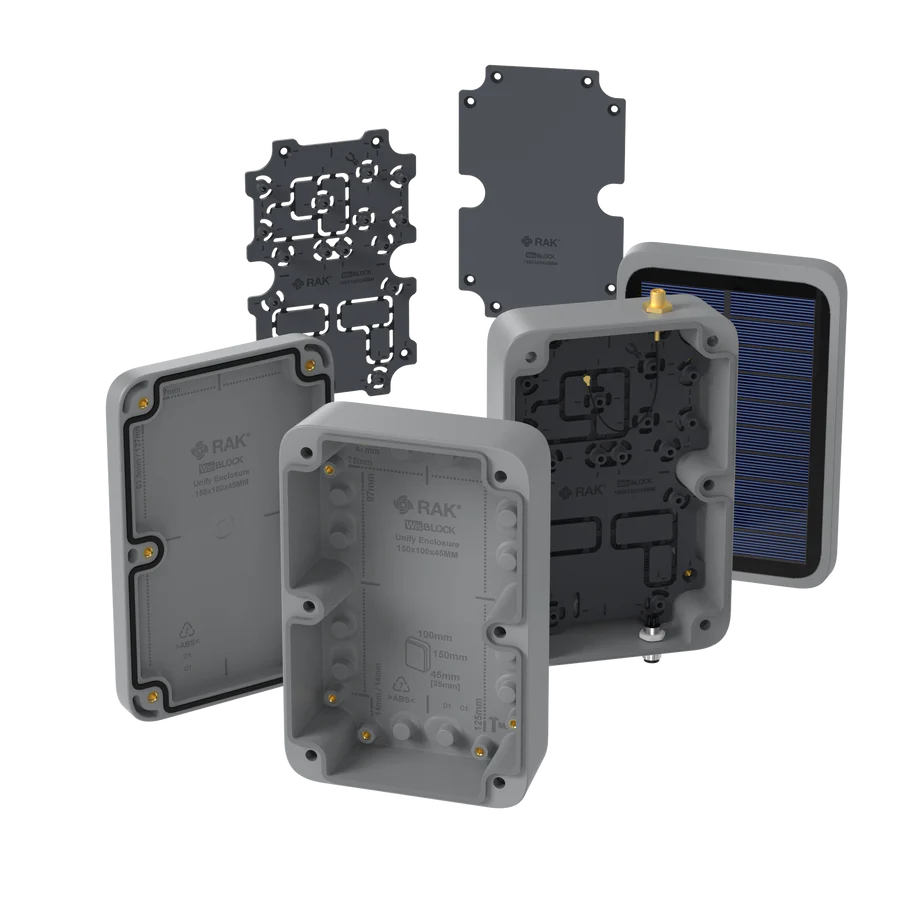

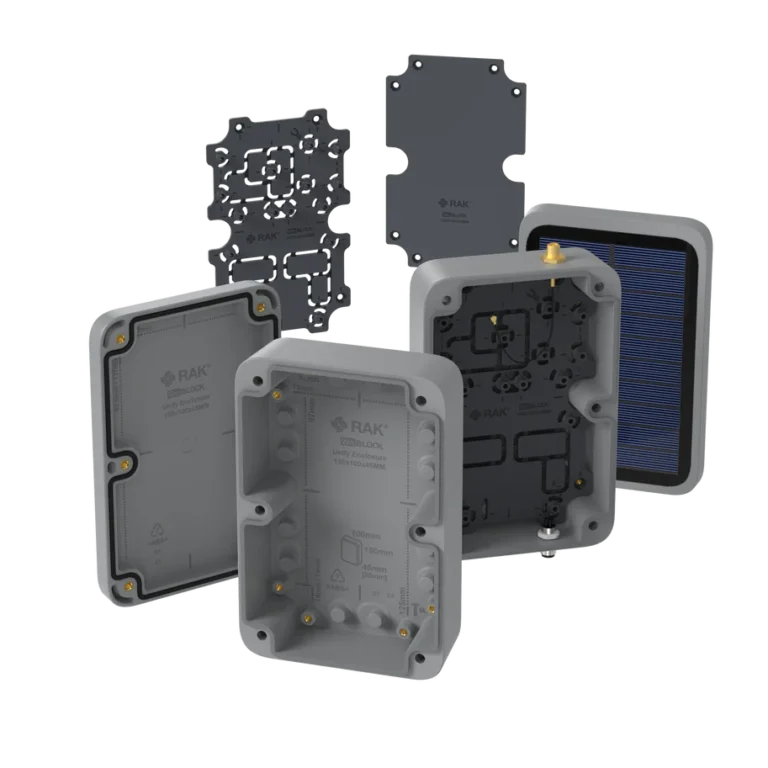

Unify Enclosure IP67 Gray 150×100×45 mm with Bespoke Plate and Pre-Mounted M8 5-Pin & RP-SMA Antenna Connectors

The Unify Enclosure IP67 Gray (150×100×45 mm) provides a durable and flexible solution for deploying IoT systems outdoors. With its IP67 protection rating, the enclosure is dust-tight and water-resistant, ensuring long-lasting protection in harsh environments.

It supports RAK19001, RAK19003, and RAK19007 WisBlock Base Boards and provides sufficient space for a flat-profile LiPo battery (approx. 107×57×6 mm) beneath the internal mounting plate.

This variant comes equipped with a pre-mounted M8 5-pin connector (IP-rated) and an RP-SMA antenna connector (IP-rated), allowing the use of an external antenna and providing options to either power your WisBlock solution with 5 V through the M8 connector or connect a solar panel to recharge an internal battery (battery and solar panel not included).

The M8 5-pin connector is configured as follows:

• 2 pins for 5 V or solar panel power supply

• 3 pins for input or output signals

A pre-mounted cable inside the enclosure comes with a matching connector for the WisBlock Base Boards’ solar panel port. The remaining three pins are solder-ready for customization.

For applications requiring access to the WisBlock Base Boards’ USB ports, 3D-printable drill guide jigs are available to position holes correctly for RAK19007, RAK19001, or RAK19011 Base Boards.
