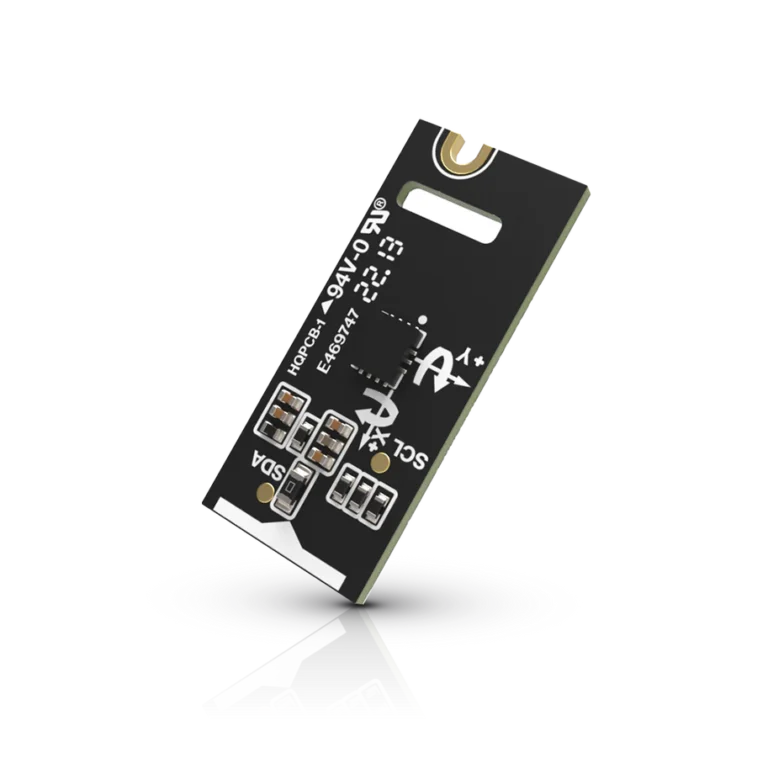

RAK12033 6-Axis Accelerometer Sensor – TDK InvenSense IIM-42652 Module

The RAK12033 combines a 3-axis accelerometer and a 3-axis gyroscope in a compact module based on the TDK InvenSense IIM-42652. With adjustable measurement ranges, exceptional shock tolerance, and ultra-low power consumption, it is ideal for navigation, robotics, and battery-powered IoT devices.

SKU: 100093

9,90 €

excl. 19% VAT plus Shipping Costs

Product Description Technical Details

The RAK12033 is a precision 6-axis sensor from the RAKWireless WisBlock Sensor series, built on the TDK InvenSense IIM-42652. It integrates a 3-axis accelerometer and a 3-axis gyroscope, enabling high-accuracy motion and orientation tracking.

The measurement ranges can be configured to suit various applications:

  • Accelerometer: ±2 g to ±16 g

  • Gyroscope: ±15.625 °/s to ±2000 °/s

With a shock tolerance of up to 20,000 g and an extended operating temperature range of -40 °C to +105 °C, the module is highly durable and suitable for industrial and mobile use cases. Data is transmitted via a high-speed I²C interface supporting up to 1 MHz.

With an ultra-low power consumption (46.7 µA to 959 µA), the RAK12033 is an excellent choice for battery-powered systems, including:

  • Navigation and positioning systems

  • Platform stabilization

  • Robotics and motion control

  • Wearables and smart devices

  • High-precision IoT applications

Specification Details
Sensor TDK InvenSense IIM-42652
Axes 3-Axis Accelerometer, 3-Axis Gyroscope
Gyroscope Range ±15.625, ±31.25, ±62.5, ±125, ±250, ±500, ±1000, ±2000 °/s
Accelerometer Range ±2 g, ±4 g, ±8 g, ±16 g
Shock Tolerance 20,000 g
Power Consumption 46.7 µA to 959 µA
Operating Voltage 3.3 V
Communication I²C Interface (up to 1 MHz)
Operating Temperature -40 °C to +105 °C
Module Size 10 x 23 mm
