Milesight Outdoor Asset Tracker AT101-868M
Robust LoRaWAN® outdoor GPS tracker with GNSS & Wi-Fi positioning, motion and temperature detection, IP67/IK09 protection, and ultra-long battery life of up to 15+ years.
115,90 €
excl. 19% VAT plus Shipping Costs
5 in stock
Related items
RAKwireless WisGate Edge Pro Outdoor LoRaWAN Gateway Rak7289cv2 (16 Channel) LTE
SKU: 715100 523,00 €3 in stock
RAKwireless WisGate Edge Pro Outdoor LoRaWAN Gateway Rak7289v2 (8 Channel) LTE
SKU: 715121 372,00 €2 in stock
RAKwireless WisGate Edge Pro Outdoor LoRaWAN Gateway Rak7289v2 (16 Channel) No LTE
SKU: 715122 495,00 €3 in stock
Grand total: 0,00 €
Product Description
Technical Details

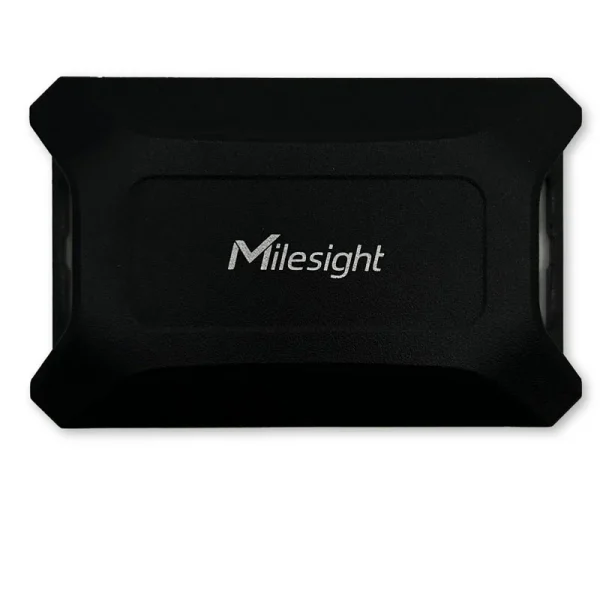

The Milesight AT101-868M is a high-performance outdoor asset tracker that leverages GNSS and Wi-Fi AP MAC address scanning to deliver accurate and reliable positioning data — even in complex environments. In addition to location tracking, the device features a 3-axis accelerometer to detect motion and tilt, as well as a built-in NTC temperature sensor for environmental monitoring.
With IP67 waterproof and IK09 impact resistance, this tracker is built for durability in harsh outdoor conditions. Powered by 4 replaceable 2700 mAh Li-SOCl2 batteries, the AT101 can last over 15 years with just two location reports per day. It supports LoRaWAN® Class A communication and integrates seamlessly with Milesight gateways and the Milesight IoT Cloud, enabling centralized, remote device management and data visualization.
Use cases span a wide range of industries — from patrol vehicles and construction equipment to farm animals, golf carts, and storage containers. Its geofencing and tamper detection capabilities enhance security and usability.
| Technical Specifications – Milesight AT101-868M | |
|---|---|
| Transmission Protocol | LoRaWAN® |
| Antenna | Internal Antenna |
| Supported Frequencies | CN470, IN865, RU864, EU868, US915, AU915, KR920, AS923-1/2/3/4 |
| Transmit Power | 16 dBm (868 MHz), 20 dBm (915 MHz), 19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| GNSS Positioning | |
| Accuracy (CEP) | 5.0 m (direct line of sight) |
| Resolution | Longitude/Latitude: 0.000001 |
| Time to First Fix | Cold Start: 37s, Hot Start: 1s |
| Sensitivity | Tracking: -167 dBm, Reacquisition: -160 dBm, Cold: -148 dBm, Hot: -159 dBm |
| Wi-Fi Positioning | |
| Method | Wi-Fi Access Point Scanning (no network connection) |
| Parameters | BSSID, RSSI |
| Standard | 802.11 b/g/n (2.4GHz) |
| Motion & Environmental Sensors | |
| Motion Detection | Normal / Tilt |
| Temperature Range | -40 to +125 °C |
| Temperature Resolution | 0.1 °C |
| Tamper Button | 1 × Internal Tamper Button |
| Software Features | |
| Power Control | NFC, Internal Power Button |
| Configuration | NFC, Bluetooth® 5.3, Downlink |
| Advanced Features | Geofence, Tilt Alarm, Tamper Alarm, Local Storage (1000 entries), Data Retransmission, Retrievability |
| Physical Characteristics | |
| Power Supply | 4 × 2700 mAh ER14505 Li-SOCl2 (Replaceable) |
| Battery Life (25°C) | 2× daily updates: 15+ years 10× daily: 8+ years Hourly: 4+ years |
| Operating Temperature | -30°C to +70°C |
| Humidity | 0 – 95% RH (non-condensing) |
| Material & Color | PC, Black |
| Ingress Protection | IP67 (Waterproof) |
| Impact Protection | IK09 (Shockproof) |
| Dimensions | 110 × 70 × 30 mm (4.33 × 2.76 × 1.18 in) |
| Weight | 202 g (including batteries) |
| Installation Options | Wall Screws, 3M Tape, Cable Ties |
| Certifications | |
| Regulatory | CE, FCC |
| Environmental | RoHS |
