Milesight Mini AI Thermopile People Counter VS351-868M PN White-Battery – Thermopile Counter with Radar Detection
The Milesight VS351-868M PN White-Battery is a compact AI-powered thermopile people counter with integrated radar detection. It delivers high-accuracy bi-directional counting, complete privacy protection, and GDPR compliance. With LoRaWAN®, Milesight D2D, and NFC support, it enables wireless installation, quick setup, and long battery life — ideal for indoor environments such as offices, meeting rooms, and public facilities.
216,90 €
excl. 19% VAT plus Shipping Costs
2 in stock
Related items
RAKwireless WisGate Edge Lite 2 Indoor LoRaWAN Gateway Rak7268cv2 (EU868/LTE Cat4 EG95-E)
SKU: 715118 219,00 €1 in stock
Grand total: 0,00 €
Product Description
Technical Details

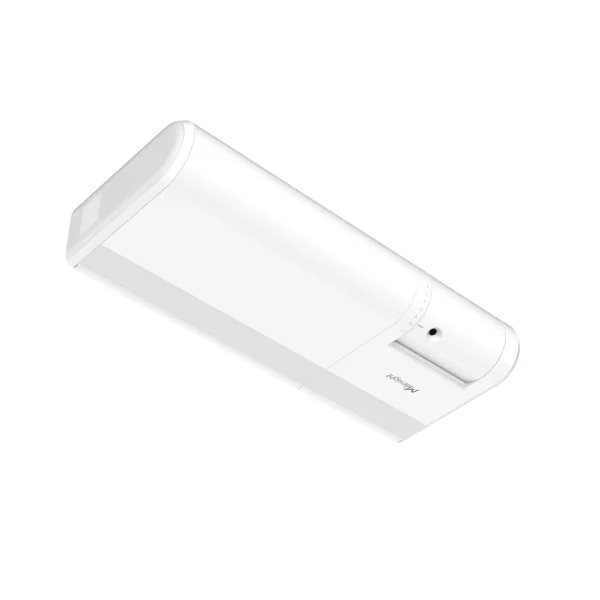

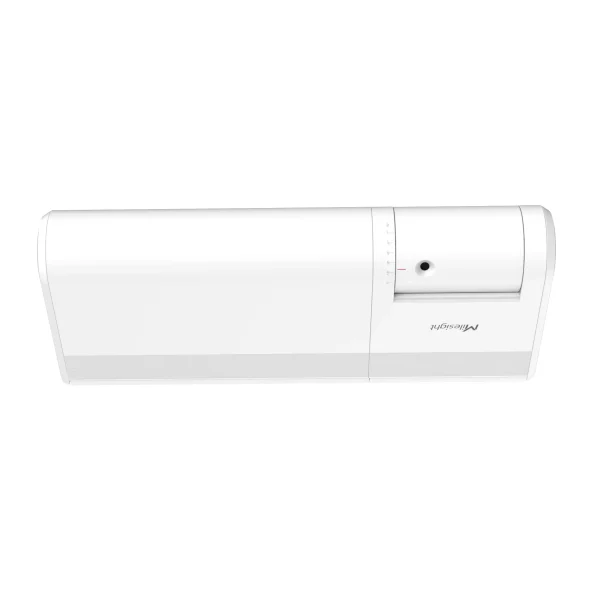

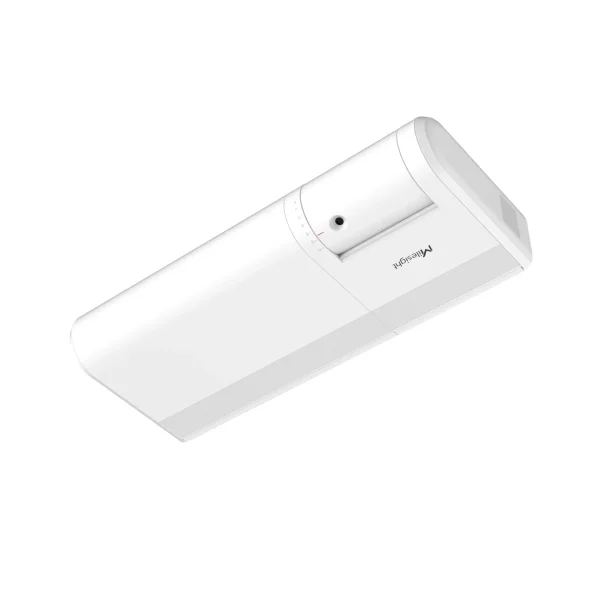

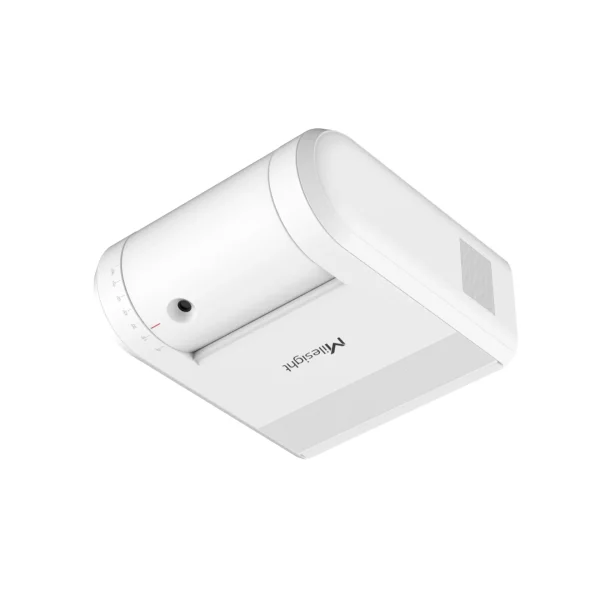

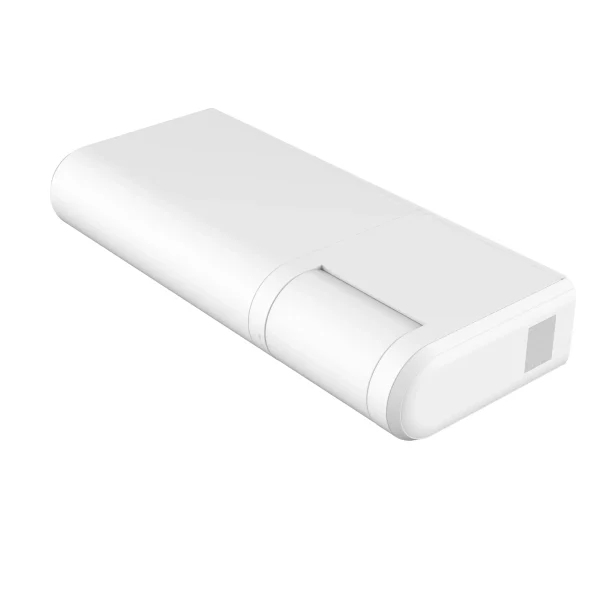

The Milesight VS351-868M PN White-Battery is an intelligent, energy-efficient AI thermopile people counter designed for accurate indoor occupancy and movement tracking. By combining thermopile sensing with an integrated radar module (battery version only), the VS351 achieves up to 95% detection accuracy, or even 99% for single-person passages.
It supports bi-directional counting, U-turn filtering, and side-by-side differentiation, ensuring precise detection even in busy traffic conditions. The built-in temperature sensor measures environmental conditions and monitors internal operating temperature for consistent performance.
With LoRaWAN® connectivity and Milesight D2D protocol, the VS351 enables direct, low-latency communication with other devices — even without a gateway. The NFC configuration via a mobile app simplifies setup, while the device’s local data storage (up to 1,000 records) and data retransmission features ensure reliability.
As a battery-powered model, the VS351 offers up to 1.7 years of battery life (SF7, EU868/US915, 25°C, 1000 people/day) thanks to its ultra-low-power design. With its compact housing, flexible mounting options (ceiling or lintel), and IP30 protection, it is the perfect solution for offices, meeting rooms, and smart building applications.
| Technical Specifications – Milesight VS351-868M PN White-Battery | |
|---|---|
| Measurement | People Counting |
| Technology | Radar (Battery Version Only) & Thermopile |
| Installation Height | 2.5 m – 3.0 m (Place device 70–120 cm away from the target, based on average audience height) |
| Detection Range | 5.55 m × 2.30 m @ 3 m installation height |
| Adjustable Sensor Angle | 0° – 90° |
| Best Operating Temperature | 15 °C – 30 °C |
| Advanced Features | U-Turn Filtering, Bi-directional People Counting, Side-by-Side Differentiation |
| Temperature Range | -30 °C – 70 °C |
| Temperature Accuracy | ± 2 °C |
| Wireless Transmission | Protocol: LoRaWAN®, Milesight D2D Antenna: Internal Frequency: CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1&2&3&4 Tx Power: 16 dBm (868 MHz) / 19 dBm (470 MHz) / 22 dBm (915 MHz) Sensitivity: -137 dBm Mode: OTAA / ABP Class A |
| Button | 1 × Internal Reset Button |
| Software | Configuration: NFC via Mobile App, Downlink Advanced Features: Data Storage (1,000 entries), Data Retransmission, Data Retrievability, Milesight D2D Controller |
| Power Supply | 1. 5V/1A via Type-C Port (Both Versions) 2. 4 × 9000 mAh ER26500 Li-SOCl₂ Replaceable Batteries (Battery Version Only) |
| Battery Life | ~ 1.7 Years (SF7, EU868 & US915) ~ 1.6 Years (SF10, EU868 & US915) (30-min Interval, 25°C, 1000 People per Day) |
| Operating Temperature | -20 °C – 60 °C |
| Relative Humidity | 0 % – 95 % (Non-condensing) |
| Ingress Protection | IP30 |
| Dimensions | Battery Version: 188 × 68 × 32 mm (7.40 × 2.68 × 1.26 in) |
| Material & Color | PC (Flame Retardant), White |
| Weight | 383 g |
| Installation | Ceiling Mount, Lintel Mount |
| Certifications | CE, FCC |
