Milesight LoRaWAN Field Tester FT101-868M

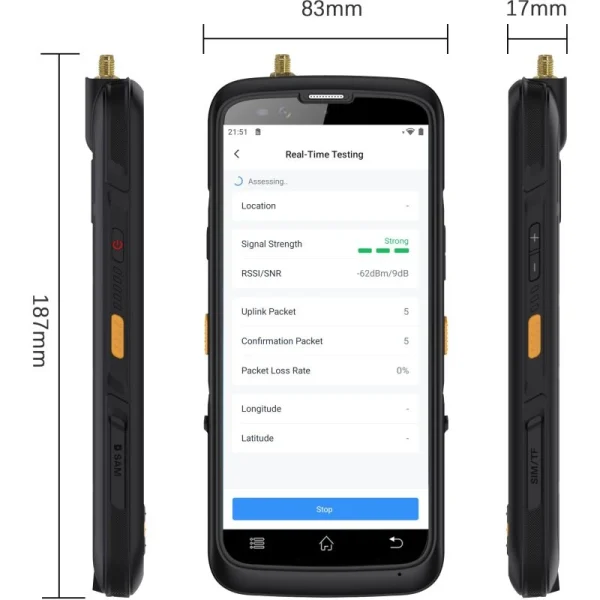

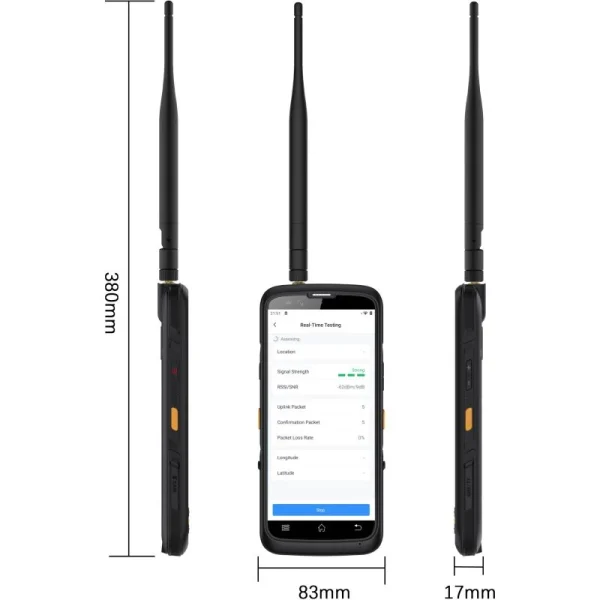

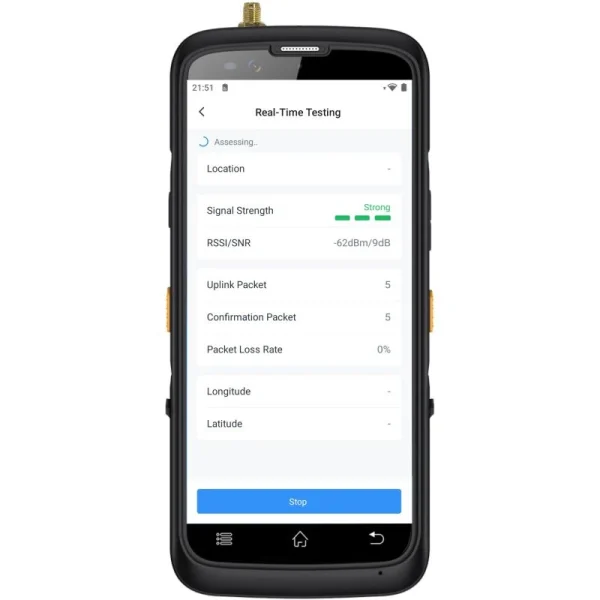

The Milesight FT101-868M Field Tester is a portable and powerful LoRaWAN® network testing device designed for professionals. Equipped with a 5.72″ touch screen, Android OS, built-in LoRaWAN® module, GPS, and Bluetooth/NFC, it enables comprehensive field signal analysis, gateway coverage validation, and optimal IoT deployment planning—globally.
530,90 €
excl. 19% VAT plus Shipping Costs
1 in stock
Related items
RAKwireless WisGate Edge Lite 2 Indoor LoRaWAN Gateway Rak7268v2 (EU868)
SKU: 715117 139,00 €7 in stock
RAKwireless WisGate Edge Pro Outdoor LoRaWAN Gateway Rak7289cv2 (8 Channel) LTE
SKU: 715123 401,00 €3 in stock
Grand total: 0,00 €
Product Description
Technical Details
The Milesight LoRaWAN Field Tester FT101-868M is an advanced tool tailored for engineers, system integrators, and technicians who need to evaluate, verify, and optimize LoRaWAN® network coverage directly in the field.
This tester includes a one-channel SX1262 LoRaWAN® module, supporting global frequency bands via interchangeable antennas. It allows users to run signal evaluations, perform noise scans, simulate device-to-gateway connections (ping-pong tests), measure packet loss rates, and monitor RSSI and SNR in real time.
With its 5.72-inch full-color LCD touchscreen, Octa-core processor (2 GHz), 4 GB RAM, and 64 GB ROM, the FT101 provides a fast, intuitive, and responsive interface. The device runs on Android 12, making it easy to navigate through applications and configurations, including NFC and Bluetooth support for use with the Milesight Toolbox App.
The rugged device is IP65-rated for dust and water resistance, making it ideal for outdoor deployment. Its built-in 4300 mAh battery delivers around 8 hours of operation, and it can be conveniently recharged via USB Type-C or power bank.
Typical Use Cases:
-
Gateway coverage validation
-
LoRaWAN® network planning and optimization
-
Device placement and signal simulation
-
Smart city and industrial deployment testing
-
Real-time GPS-based network diagnostics
| Display | |
|---|---|
| Screen | 5.72-inch TP LCD Touch Screen |
| Resolution | 1440 × 720 Pixels |
| Hardware System | |
| CPU | Octa-core MTK6762, 2 GHz |
| Memory | 4 GB RAM + 64 GB ROM |
| Operating System | Android 12.0 |
| NFC | Supports ISO/IEC 14443A, Reading Distance: 1–3 cm |
| Extendable Storage | 1 × Micro SD Slot (up to 256 GB) |
| LoRaWAN® | |
| Channel | 1 |
| Antenna Connector | 1 × 50 Ω SMA Female Connector |
| Frequency Bands | CN470 / IN865 / EU868 / RU864 / US915 / AU915 / KR920 / AS923-1&2&3&4 |
| Sensitivity | -137 dBm @ 125 kHz, SF=12 |
| Max Output Power | 19 dBm (470 MHz) / 16 dBm (868 MHz) / 22 dBm (915 MHz) |
| Protocol | LoRaWAN® V1.0.3 |
| Work Mode | OTAA Class A |
| Interfaces | |
| Wi-Fi | IEEE 802.11 b/g/n (2.4 GHz), IEEE 802.11 a/n/ac (5 GHz) |
| Bluetooth | Bluetooth 4.0 (BLE) |
| GNSS | GPS / Glonass / Beidou / Galileo |
| USB | 1 × USB 3.0 Type‑C Port for Power & OTG |
| Physical Characteristics | |
| Power Supply | 1. Built‑in 4.3V / 4300 mAh Lithium‑iron Rechargeable Battery 2. 5V⎓2A via USB Type-C |
| Battery Life | Approx. 8 hours (Standby >300 hours) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | Up to 95% (Non‑condensing) |
| Color | Black |
| Ingress Protection | IP65 |
| Dimensions | 178 × 83 × 17 mm (7 × 3.26 × 0.67 in) |
| Weight | 242 g (Without Antenna) |
| Approvals | |
| Regulatory | CE |
