Milesight EM300-MLD-868M LoRaWAN Magnetic Contact Switch
The EM300‑MLD‑868M is a LoRaWAN®-enabled leak detection sensor using a printed, flexible sensing film for accurate and wide-area liquid detection. Designed for harsh environments with IP67 protection, long battery life, and integrated wireless transmission, it is ideal for server rooms, warehouses, and industrial automation.
74,90 €
excl. 19% VAT plus Shipping Costs
5 in stock
Related items
RAKwireless WisGate Edge Pro Outdoor LoRaWAN Gateway Rak7289cv2 (8 Channel) LTE
SKU: 715123 401,00 €3 in stock
RAKwireless WisGate Edge Pro Outdoor LoRaWAN Gateway Rak7289v2 (8 Channel) LTE
SKU: 715121 372,00 €2 in stock
RAKwireless WisGate Edge Pro Outdoor LoRaWAN Gateway Rak7289cv2 (16 Channel) LTE
SKU: 715100 523,00 €3 in stock
Grand total: 0,00 €
Product Description
Technical Details

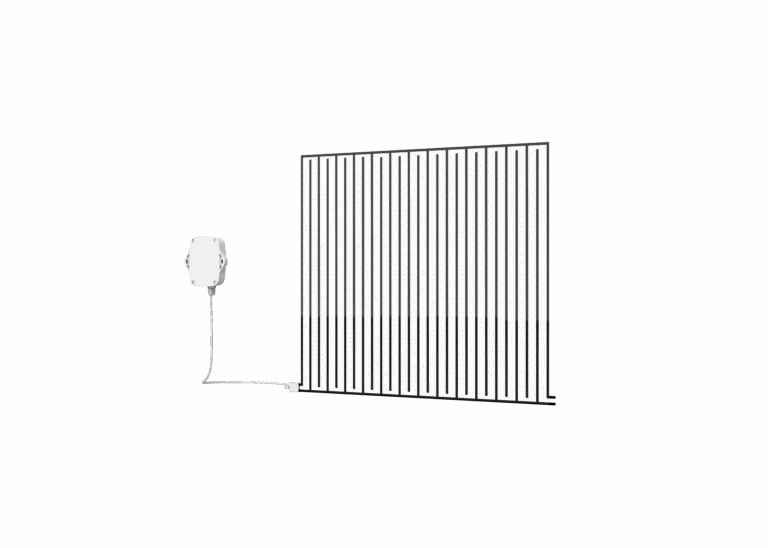

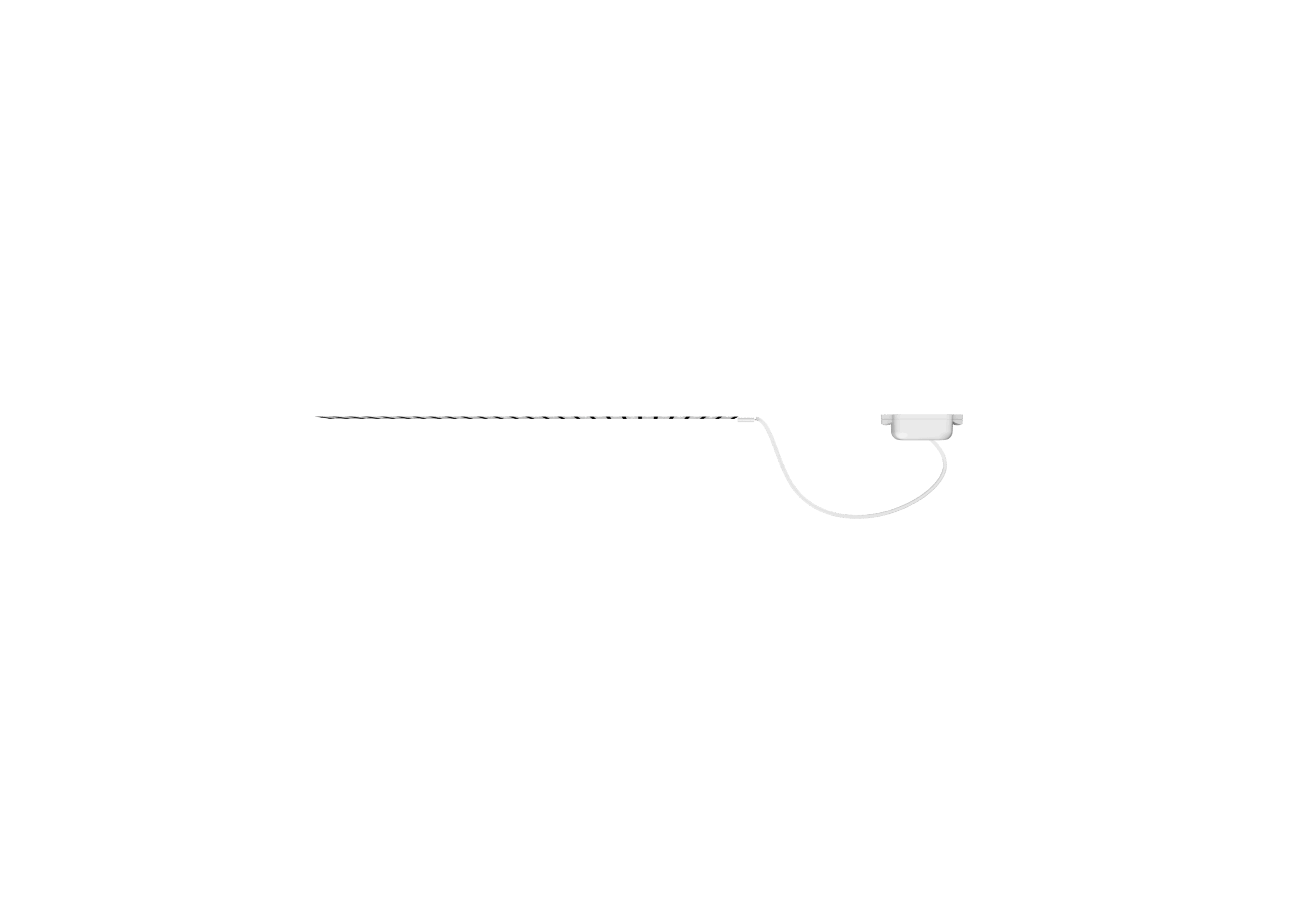

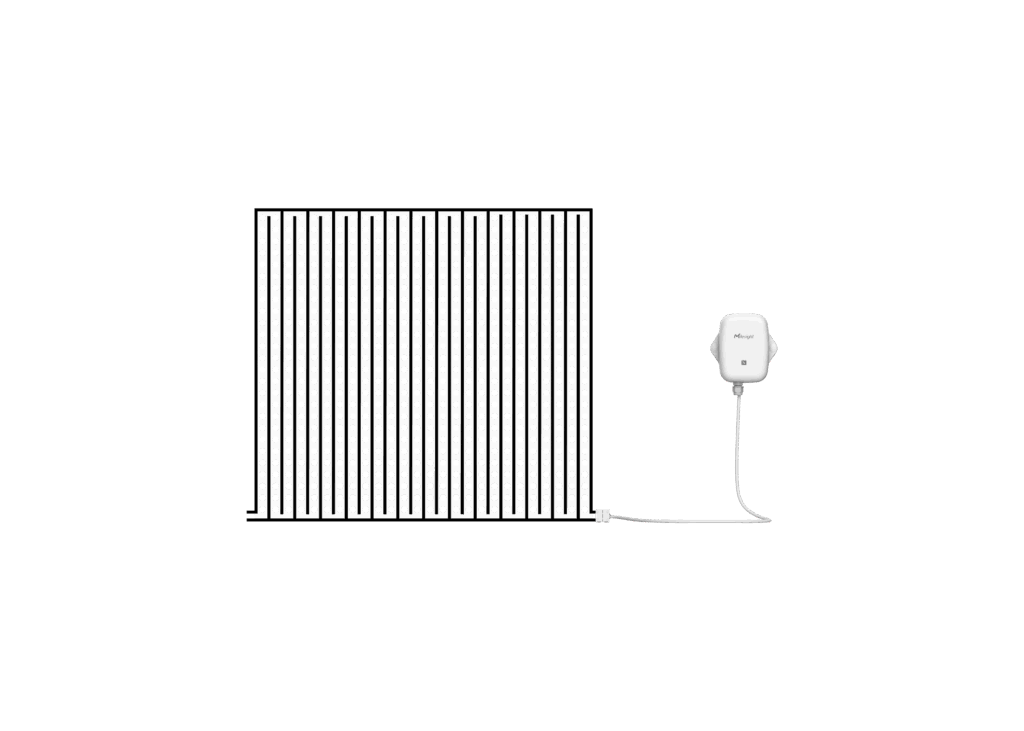

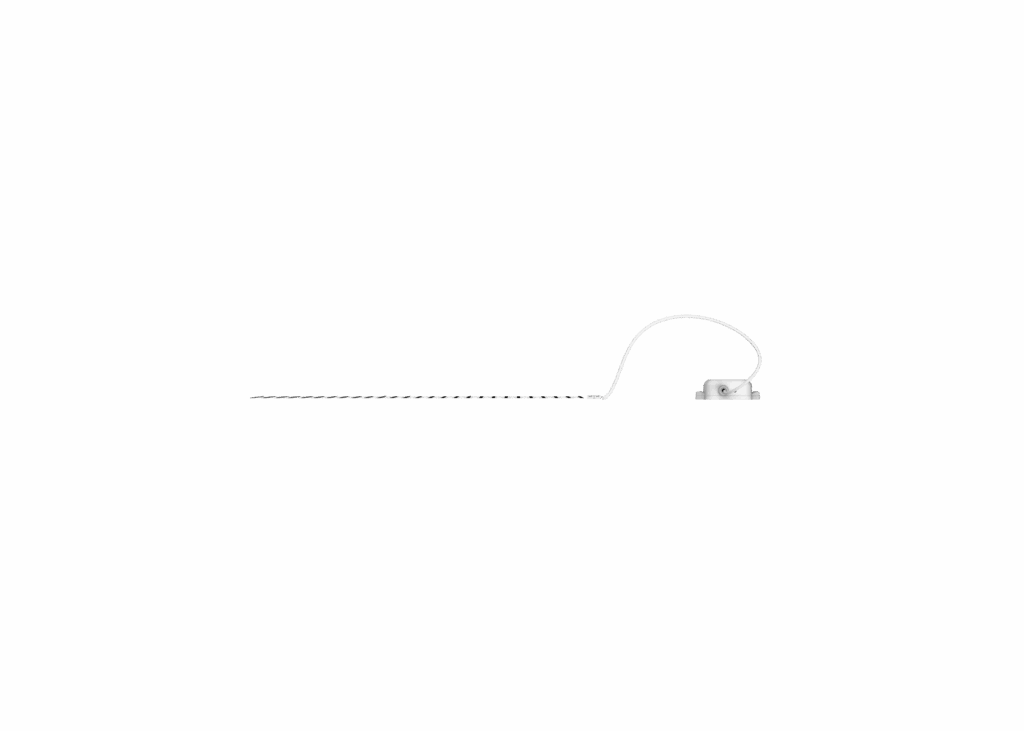

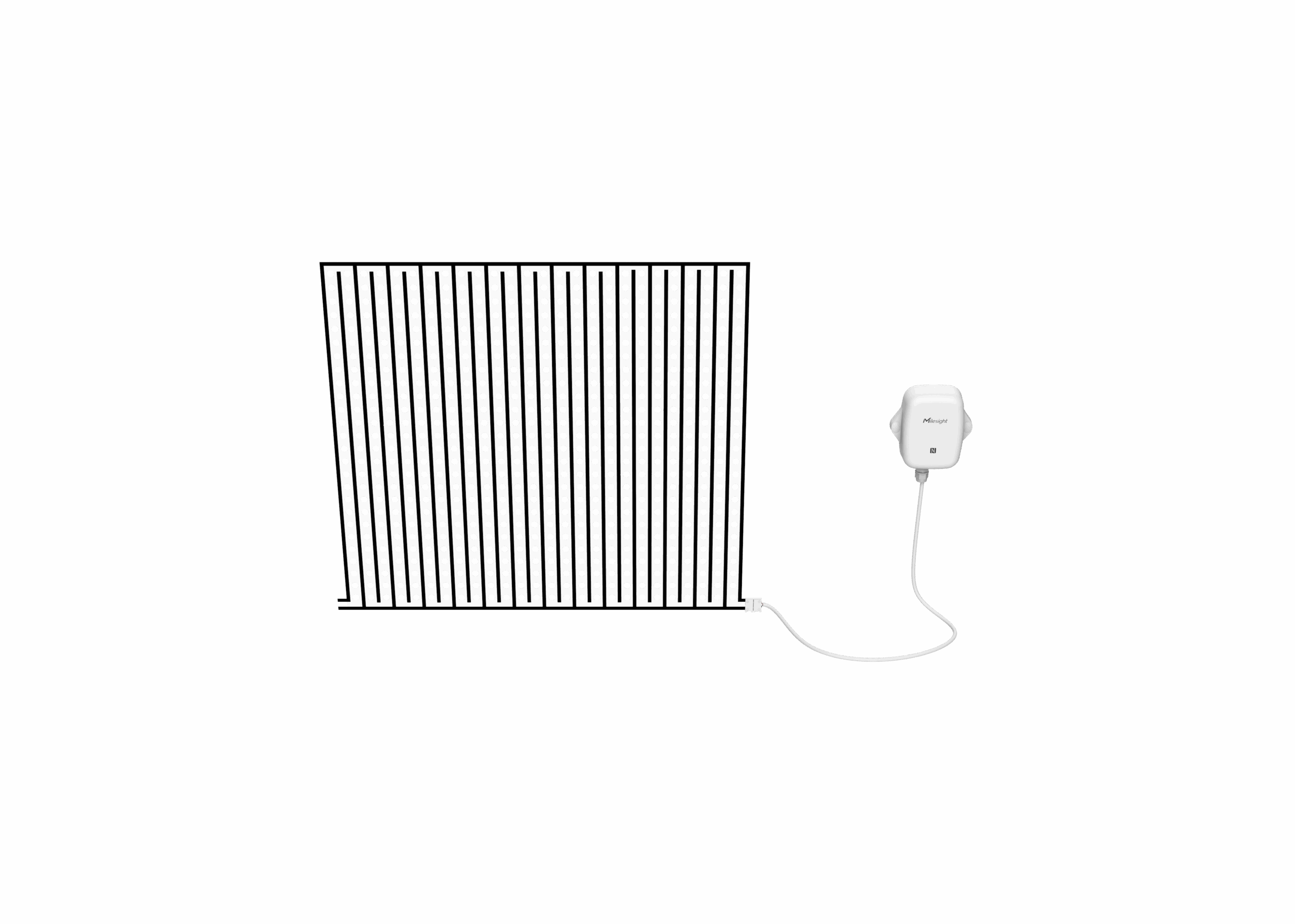

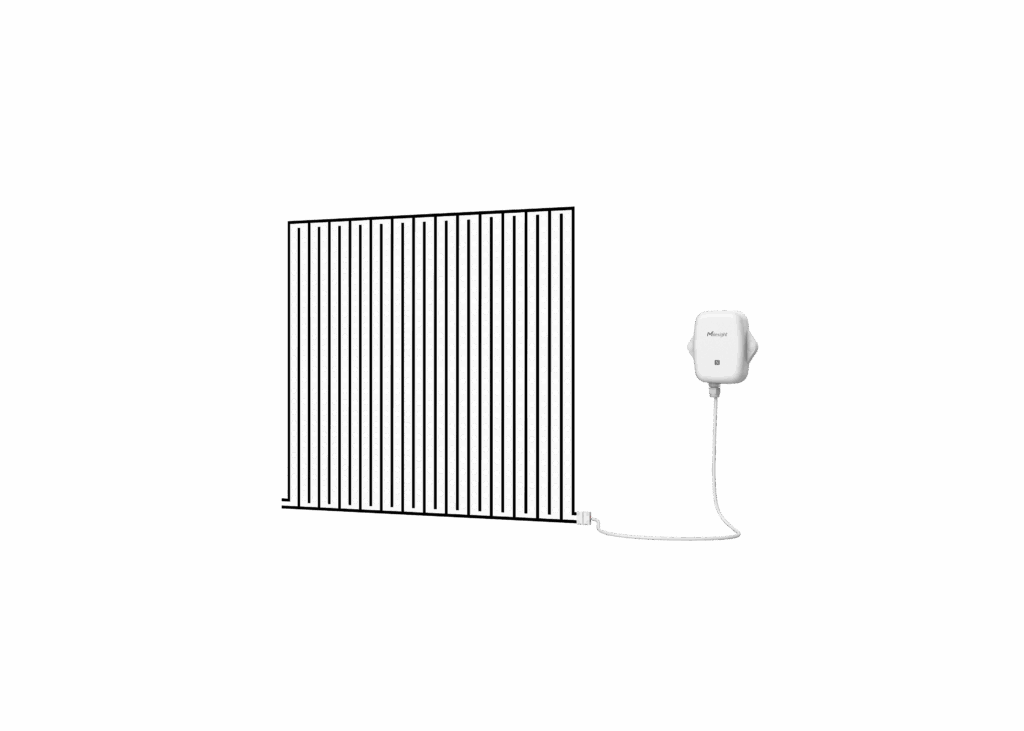

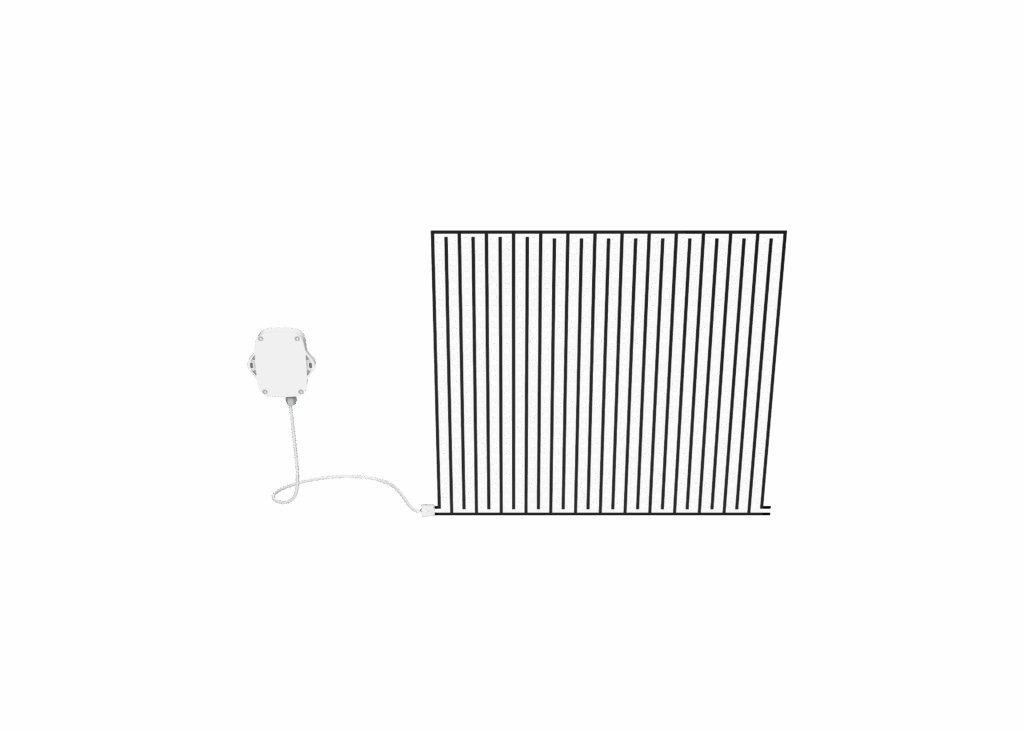

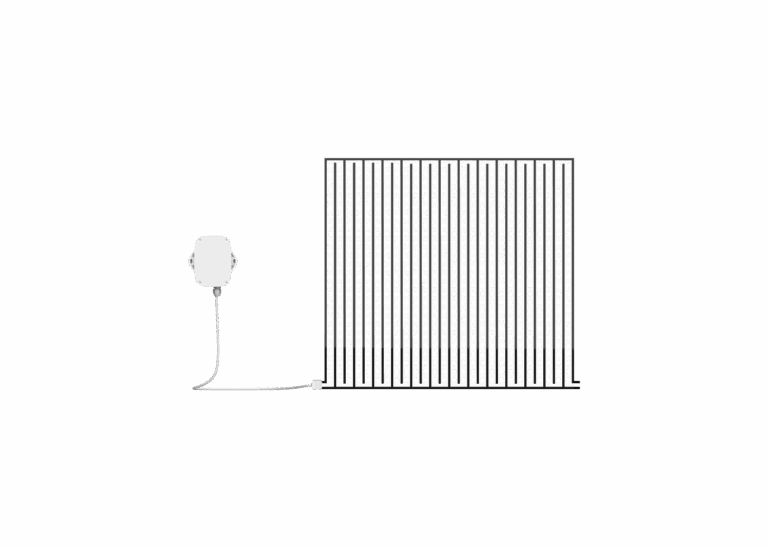

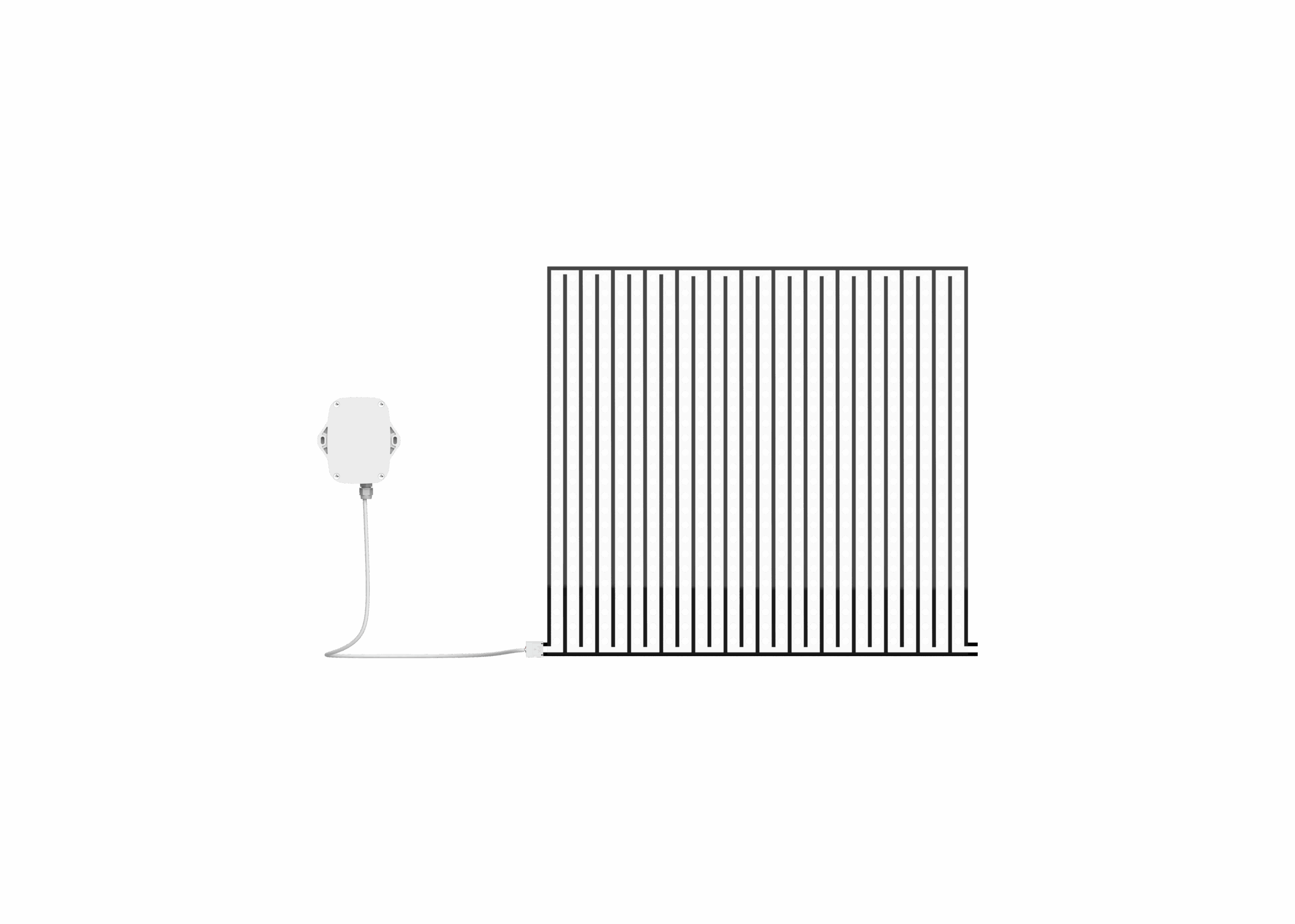

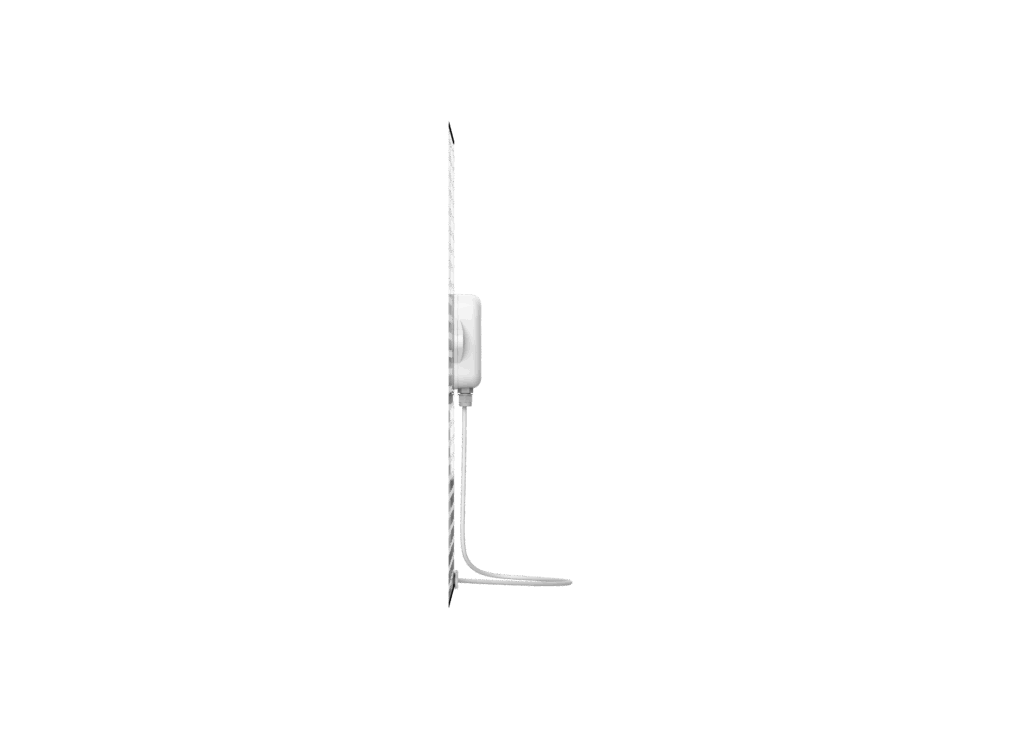

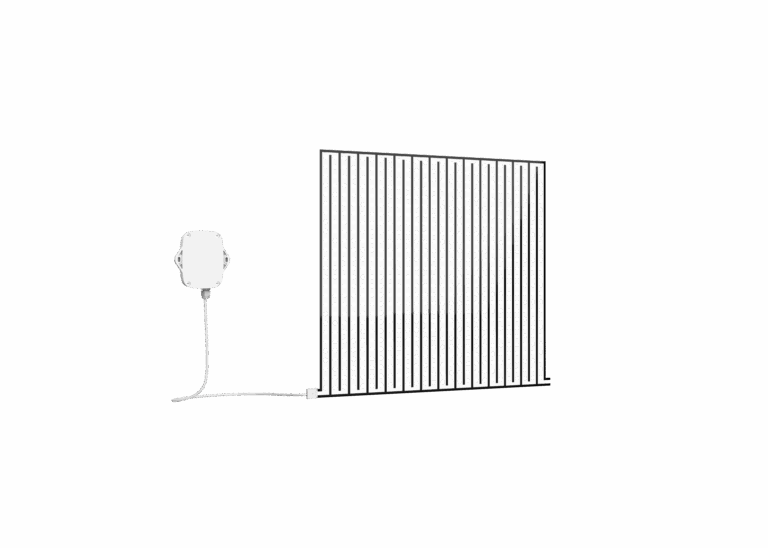

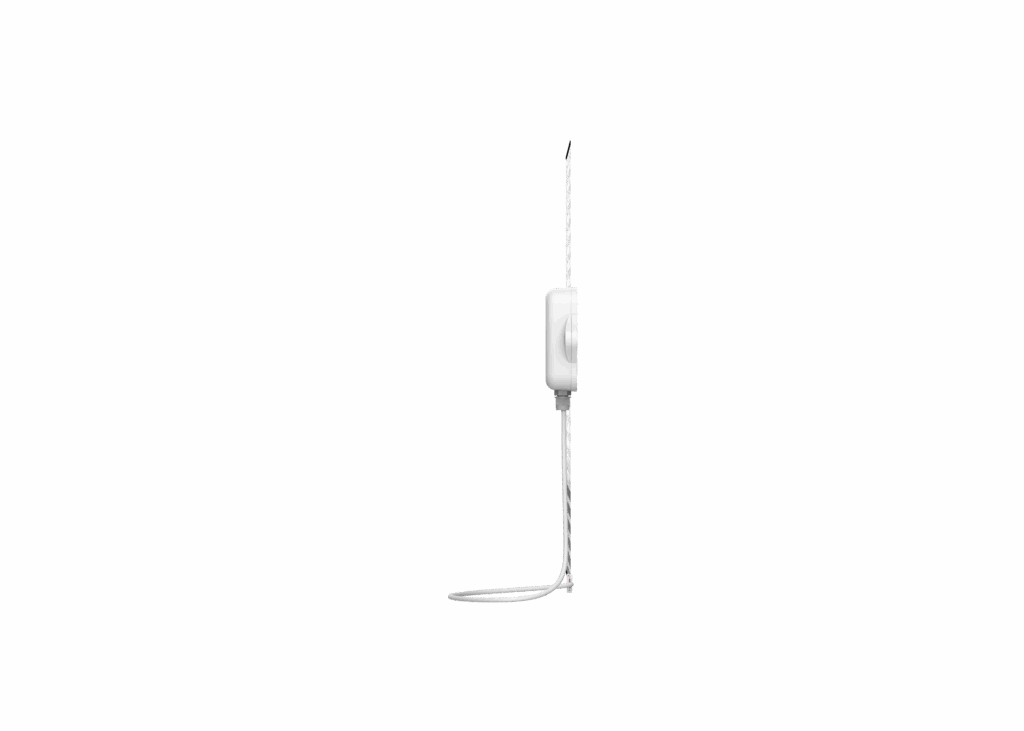

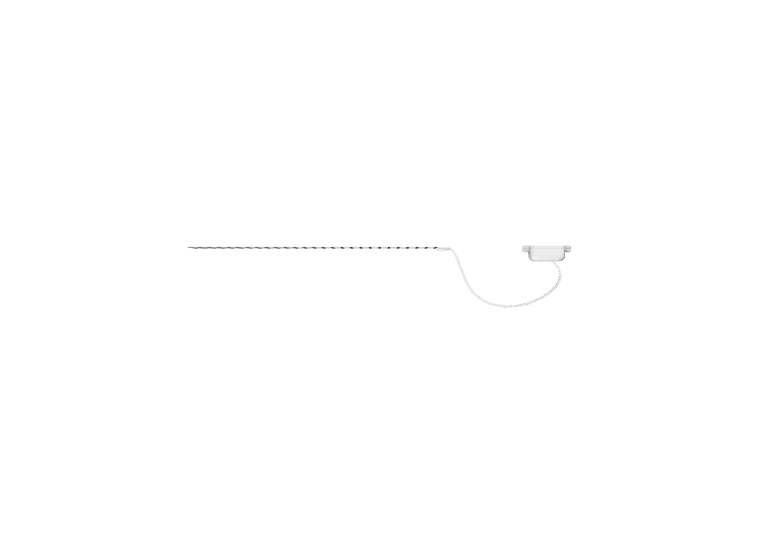

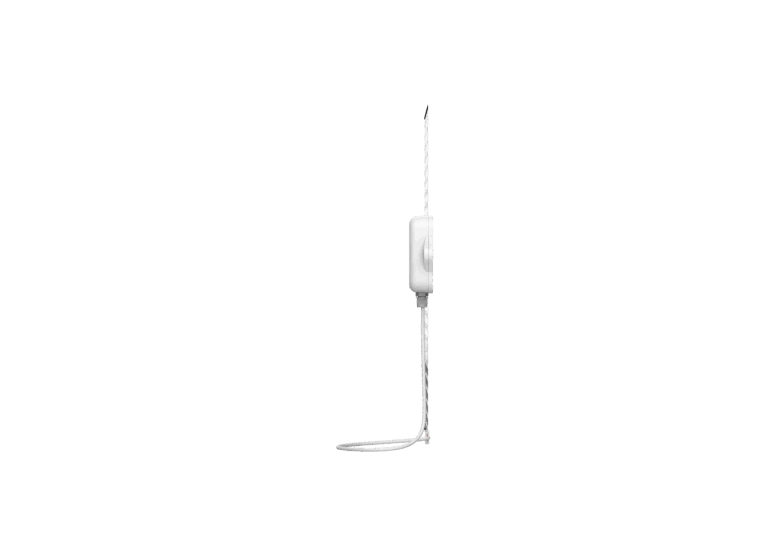

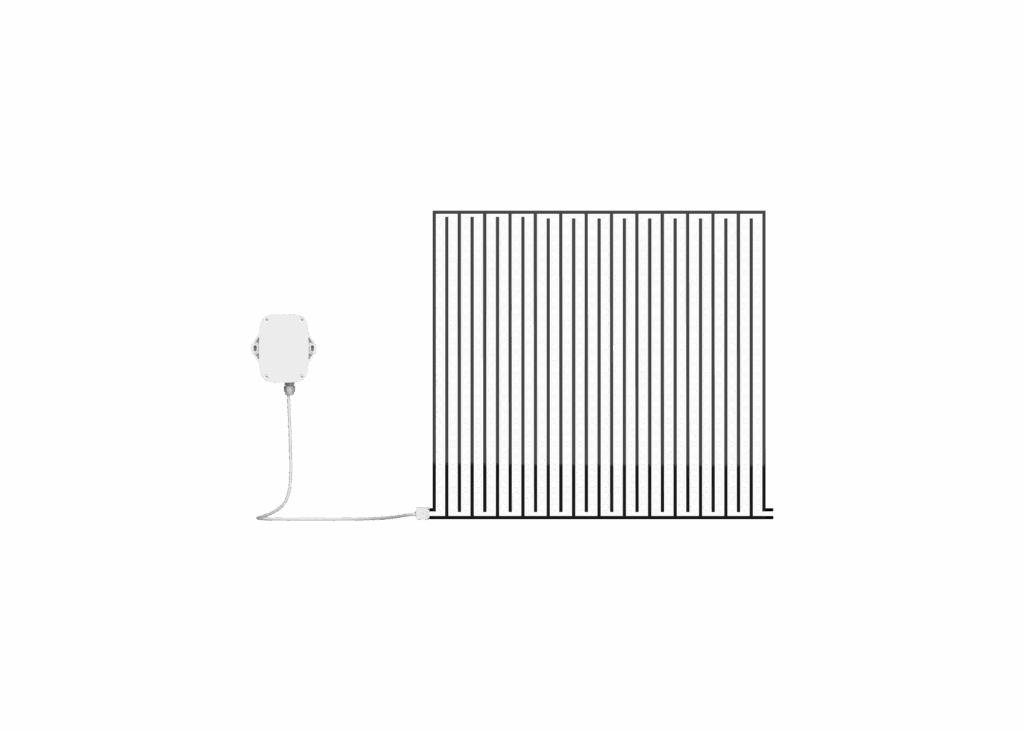

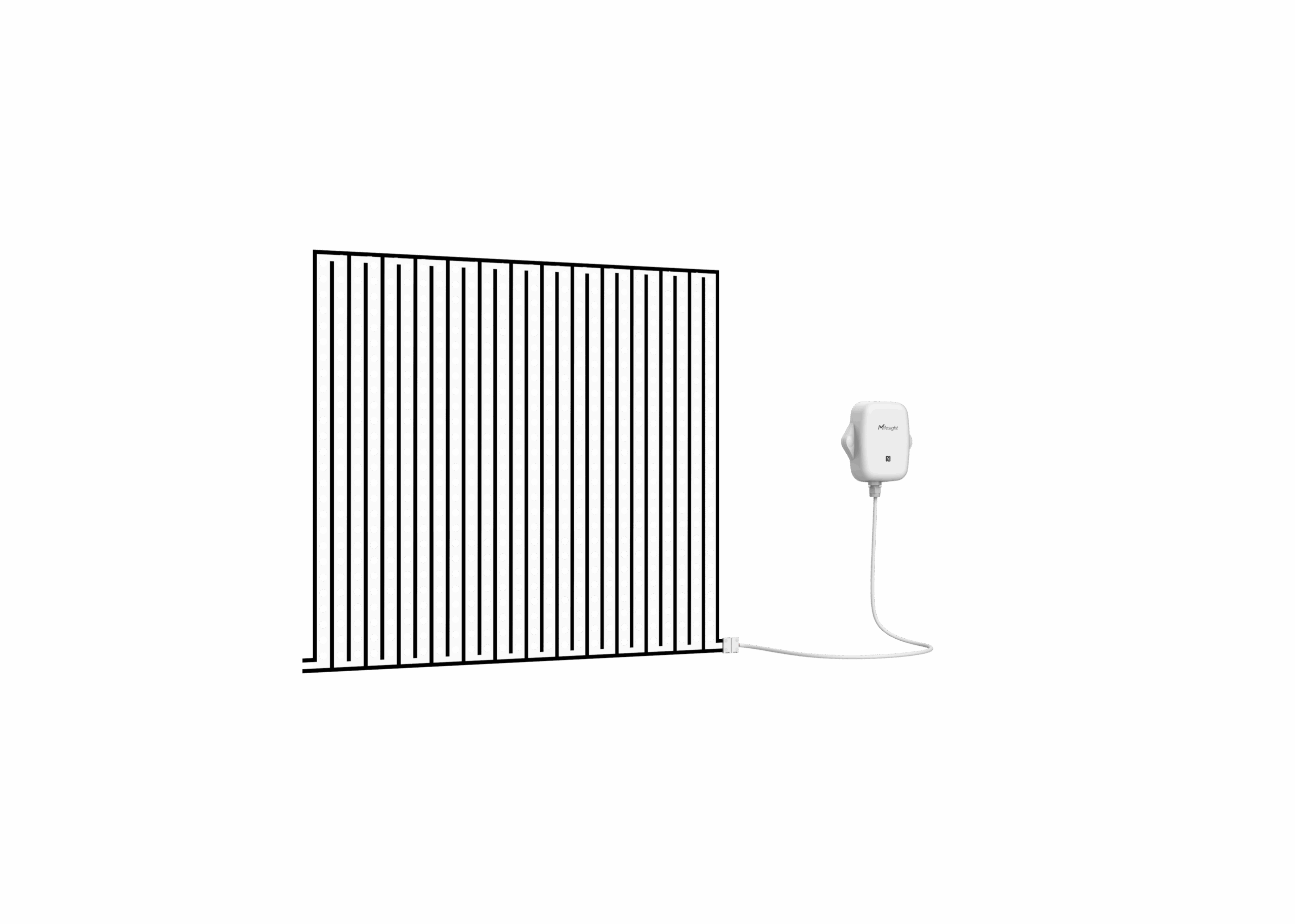

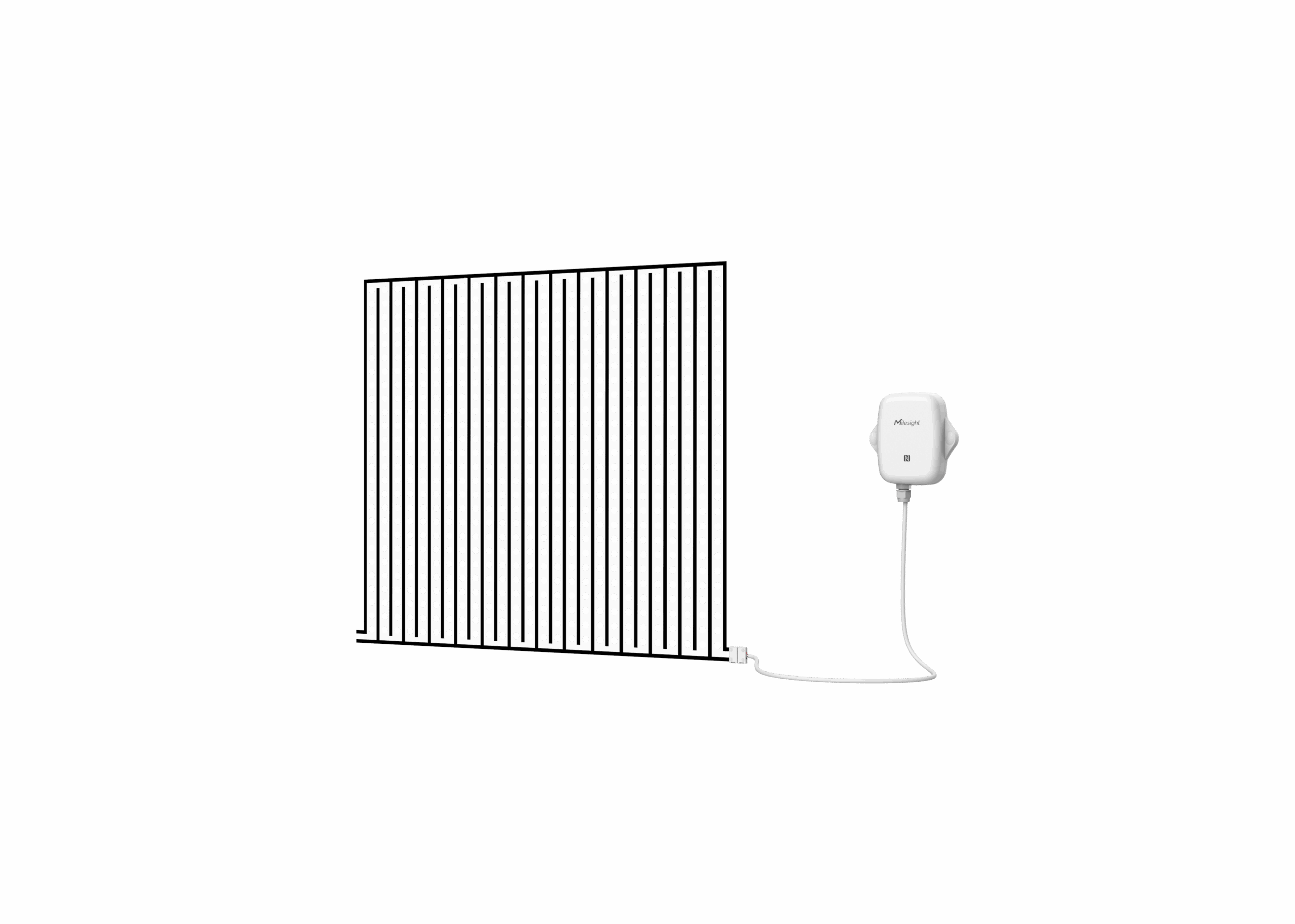

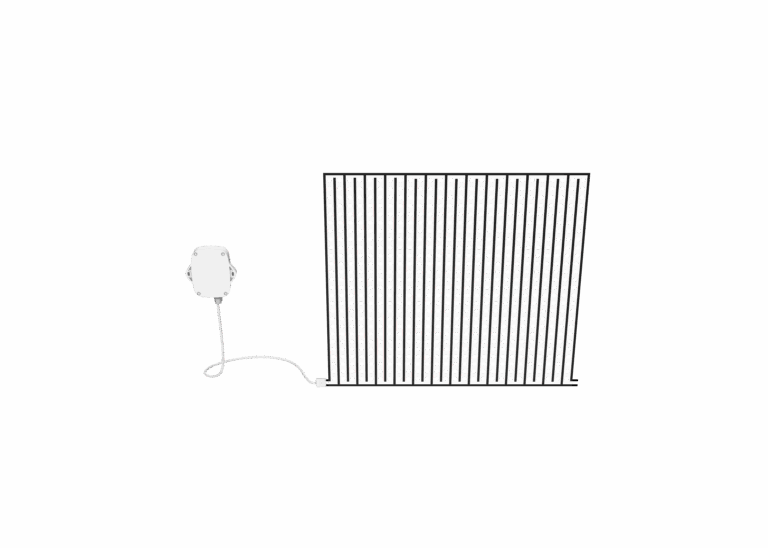

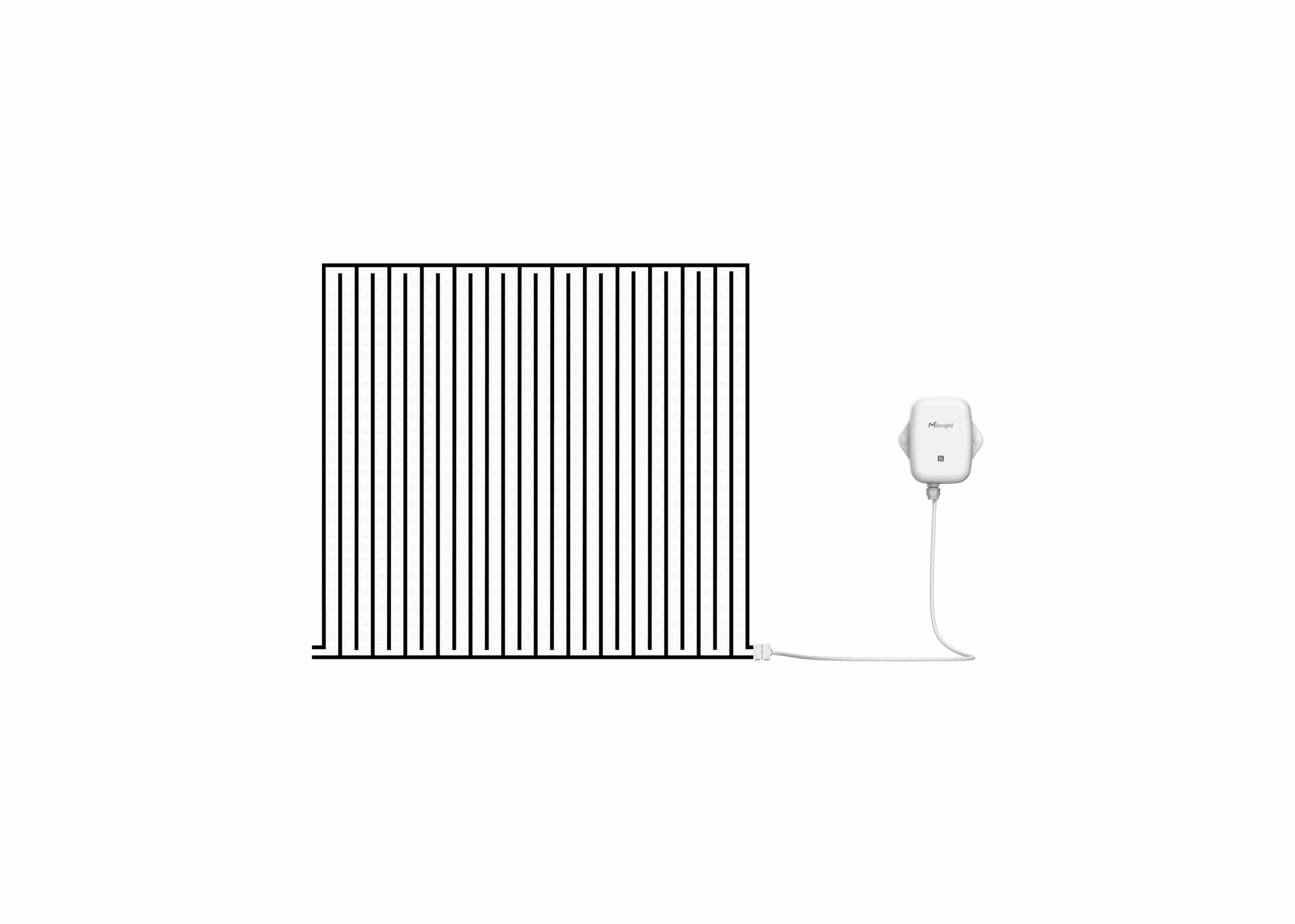

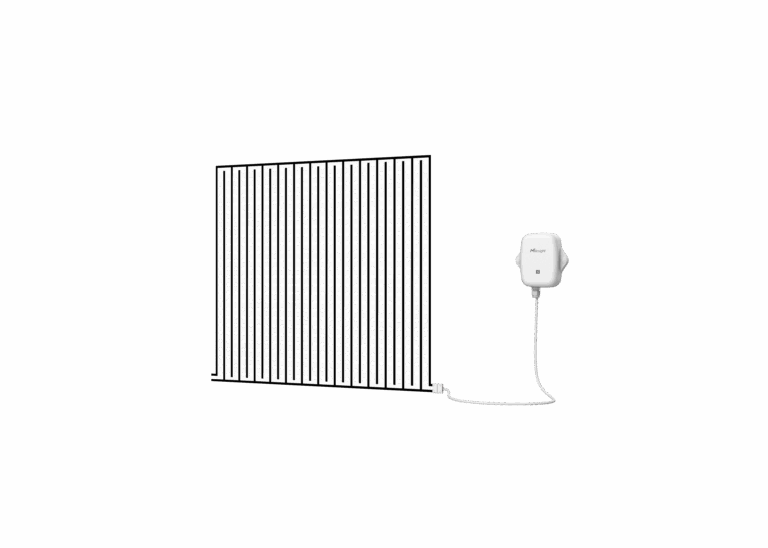

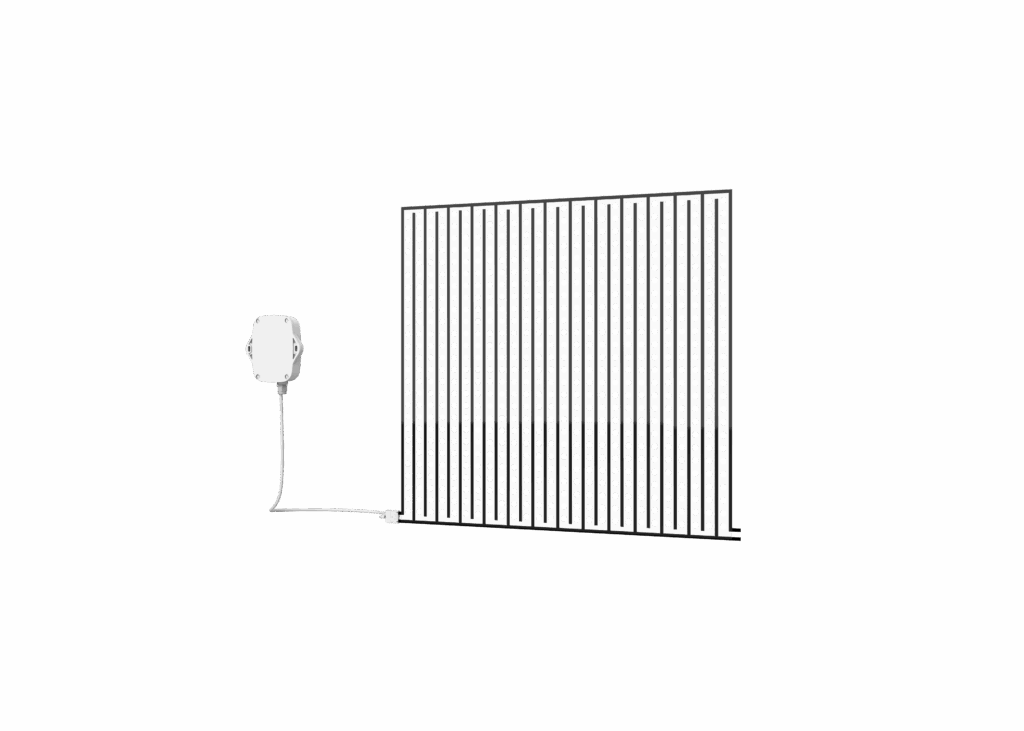

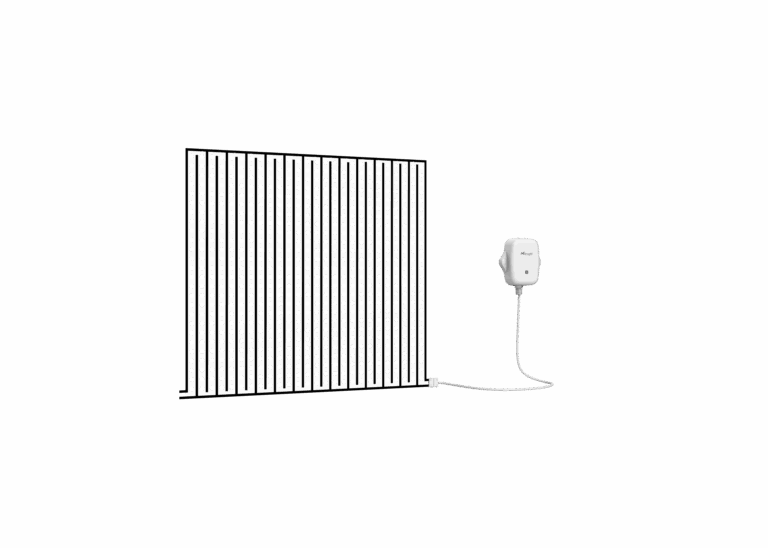

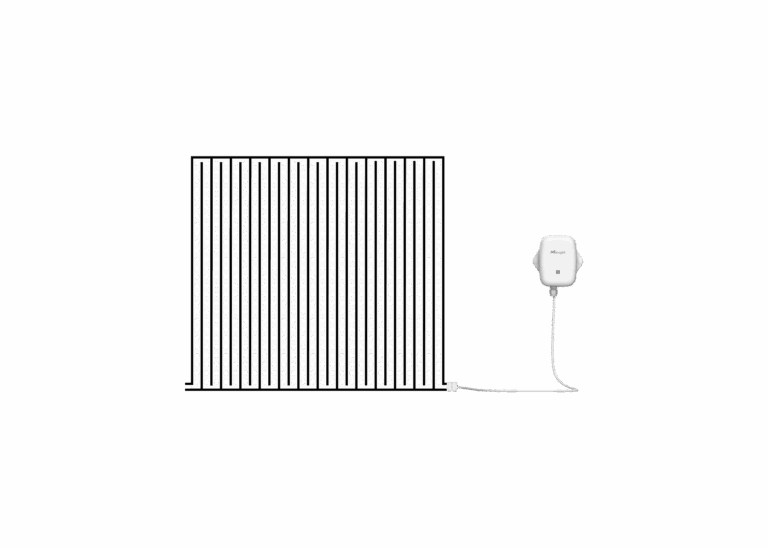

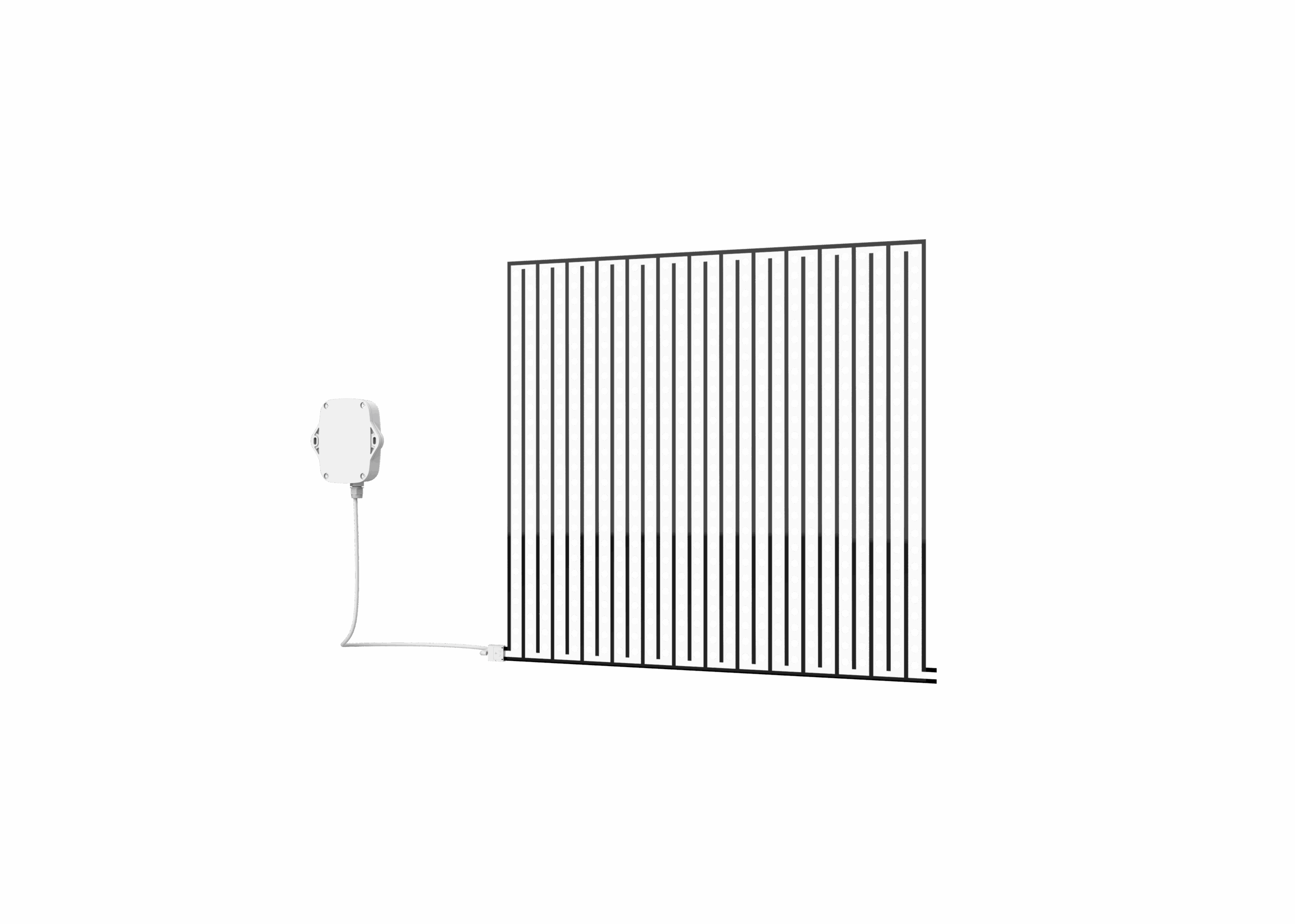

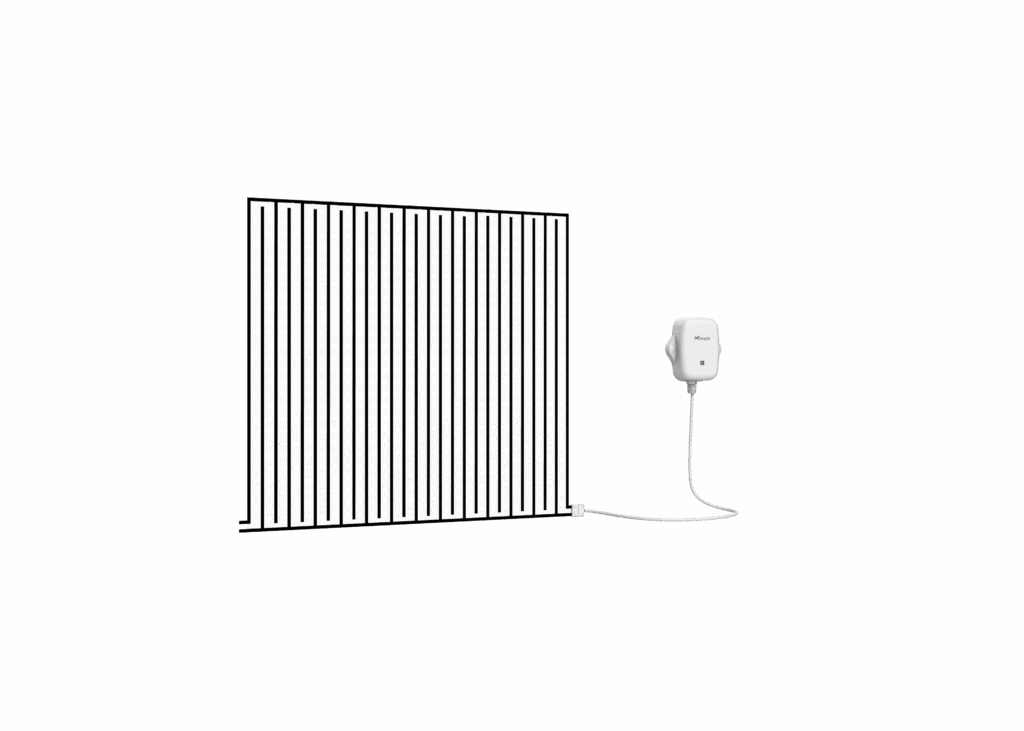

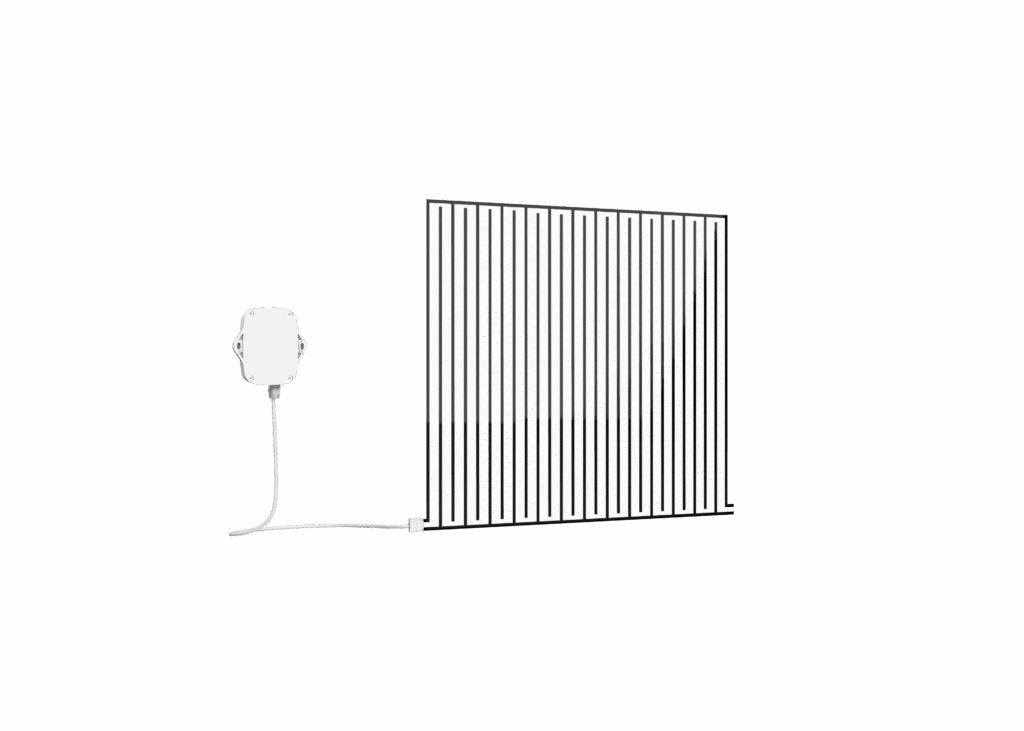

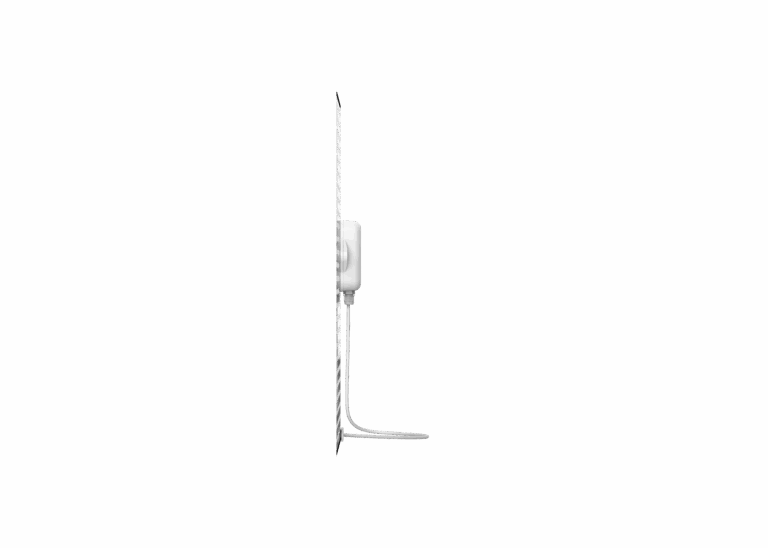

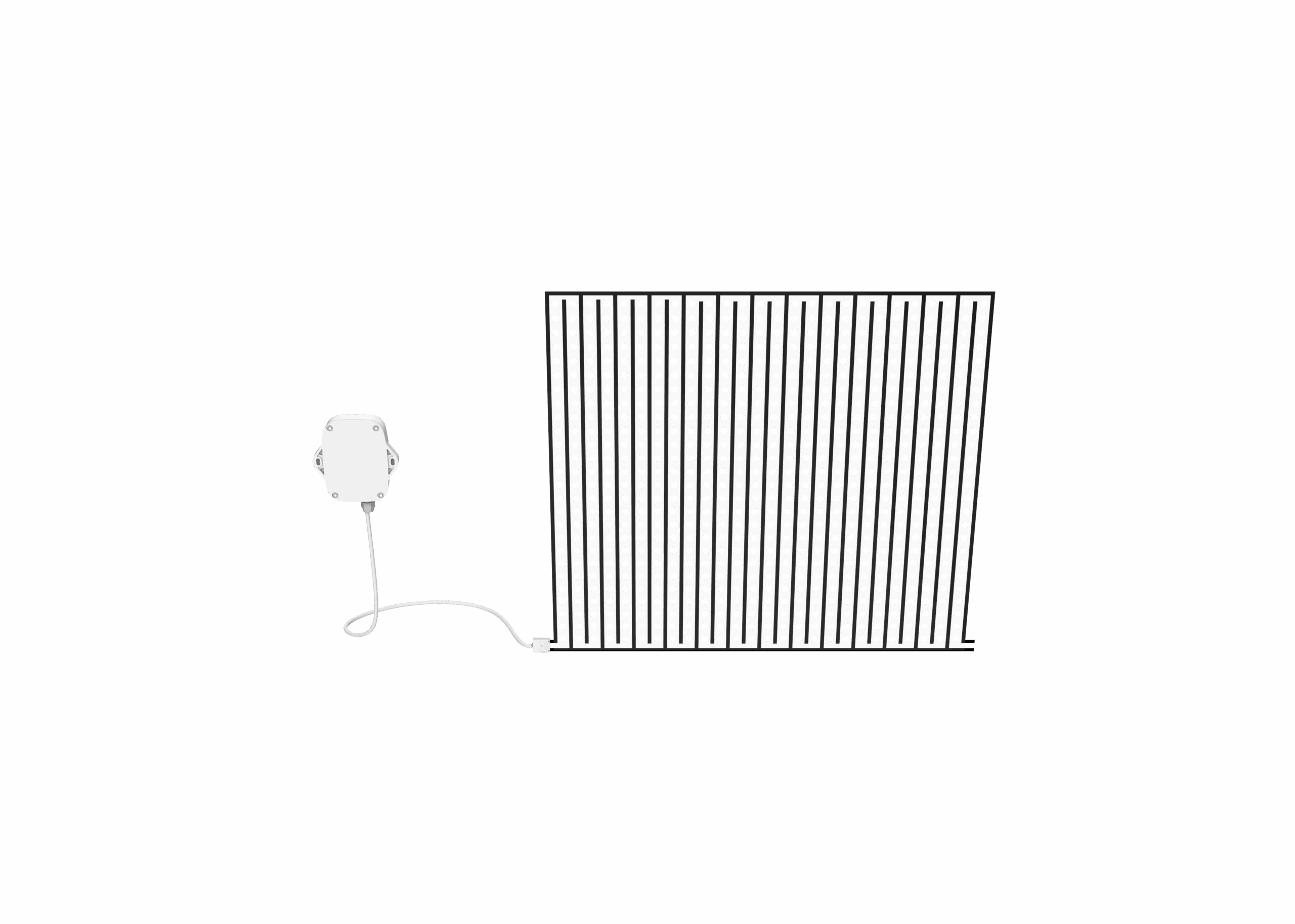

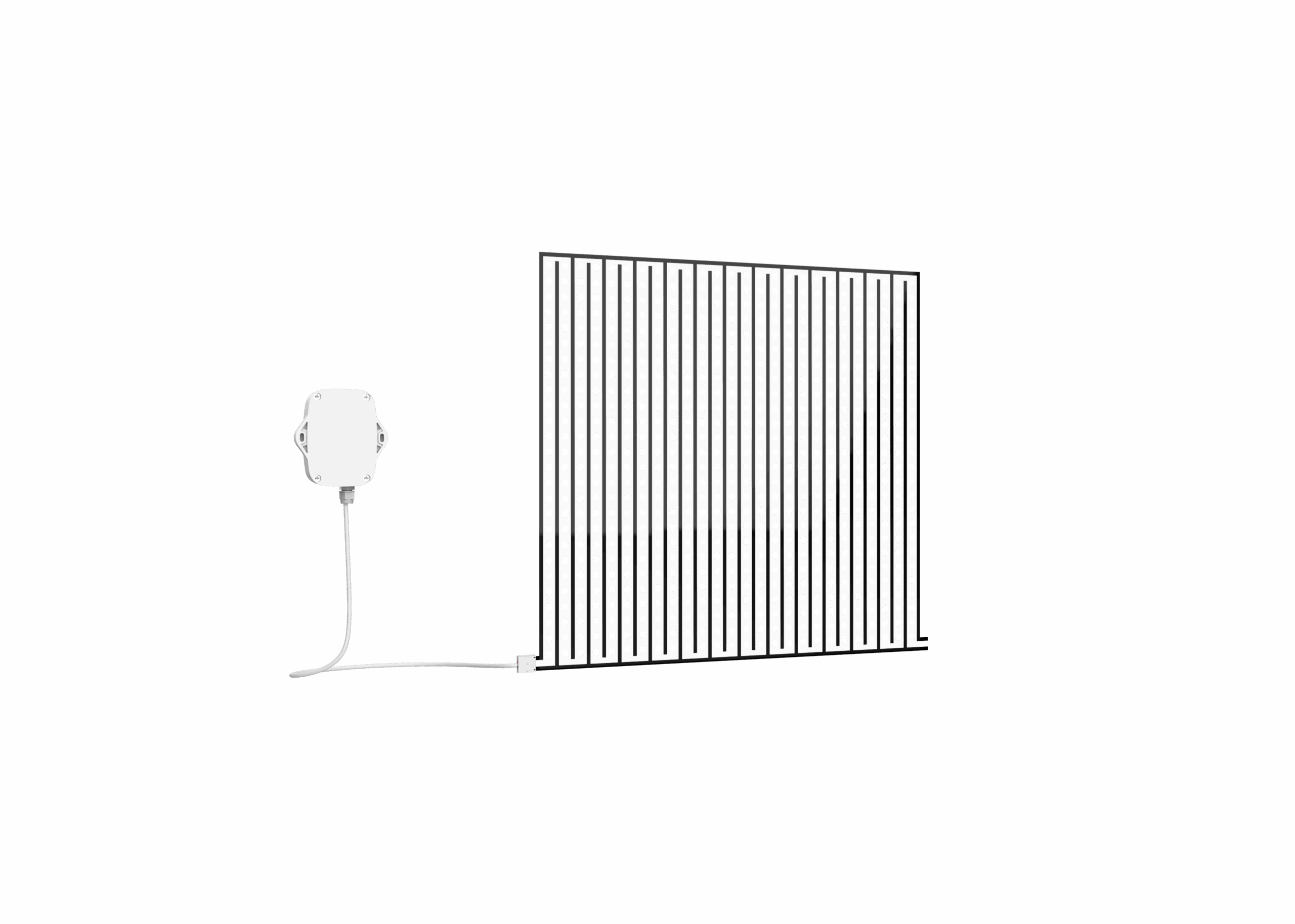

The Milesight EM300‑MLD‑868M is an advanced leakage detection sensor equipped with a flexible, printed sensing film designed to detect conductive liquids like water, weak acids, or bases. Its ultra-thin film design allows for large surface area coverage, making it ideal for precise and customized detection zones in environments where leaks must be addressed quickly.
With support for LoRaWAN® and Milesight D2D communication protocols, this device provides long-range wireless transmission (up to 10 km line-of-sight) while maintaining low power consumption. The IP67-rated enclosure and flame-retardant ABS + PC housing make it reliable in demanding environments like server racks, workshops, industrial facilities, and storage rooms.
The sensor features a reusable printed sensing film, NFC configuration, and real-time leak alarms. It also logs up to 1,000 historical records, supports data retransmission, and integrates seamlessly with Milesight IoT Cloud and the Milesight Development Platform.
Powered by a replaceable 4000 mAh battery (optional 8000 mAh), the EM300‑MLD offers up to 10 years of operation under typical use (1 hour leak per day, 25°C). Installation is flexible with options for wall screws, 3M tape, or cable ties for the transceiver and tape mounting for the sensing film.
| Technical Feature | Details |
|---|---|
| Wireless Transmission | |
| Technology | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4 |
| Tx Power | 16 dBm (868 MHz), 20 dBm (915 MHz), 19 dBm (470 MHz) |
| Sensitivity | −137 dBm @ 300 bps |
| Mode | OTAA / ABP Class A |
| Leakage Detection | |
| Supported Liquid Types | Conductive liquids (Water, Weak Acid, Weak Base, etc.) |
| Trigger Medium | 400 × 400 × 0.25 mm printed leakage-detecting film (customizable size) |
| Trigger Condition | Soaking liquid length > 1.5 cm |
| Indicators & Controls | |
| LED | 1 × Internal LED Indicator |
| Button | 1 × Power/Reset Button (Internal) |
| Software Features | |
| Power On/Off | NFC, Internal Button |
| Configuration | NFC via Mobile App, Downlink |
| Advanced Features | Water Leakage Alarm, D2D Controller, 1,000-entry Data Storage, Data Retransmission, Data Retrieval |
| Power Supply | |
| Battery | 1 × 4000 mAh ER18505 Li‑SOCL₂ Battery (Optional 8000 mAh) |
| Battery Life* | ~10 Years (SF7, EU868 & US915) ~5.3 Years (SF10, EU868) ~3.9 Years (SF10, US915) (*1 hour leak per day @ 25°C) |
| Physical Characteristics | |
| Cable Length | 1000 mm (Customizable) |
| Operating Temperature | −30°C to +70°C |
| Relative Humidity | 0% to 95% RH (non-condensing) |
| Color & Material | White, ABS + PC (Flame Retardant) |
| Weight | 142 g (with 1 battery) |
| Ingress Protection | IP67 |
| Dimensions | 105.6 × 85.3 × 27 mm (4.16 × 3.36 × 1.06 in) |
| Mounting Options | Transceiver: Wall Screws, 3M Tape, Cable Ties Leak Detection Film: 3M Tape Mounting |
| Certifications | |
| Regulatory | CE, FCC, ISED |
