Magnetic Encoder Osram AS5600-ASOT – RAK12054

The RAK12054 Magnetic Encoder, based on the Osram AS5600, provides contactless 12-bit angle measurement. With user-programmable start and stop positions and a smart low-power mode, it is ideal for contactless potentiometers, knobs, pedals, and RC servos.

SKU: 100210

6,50 €

excl. 19% VAT plus Shipping Costs

Product Description Technical Details

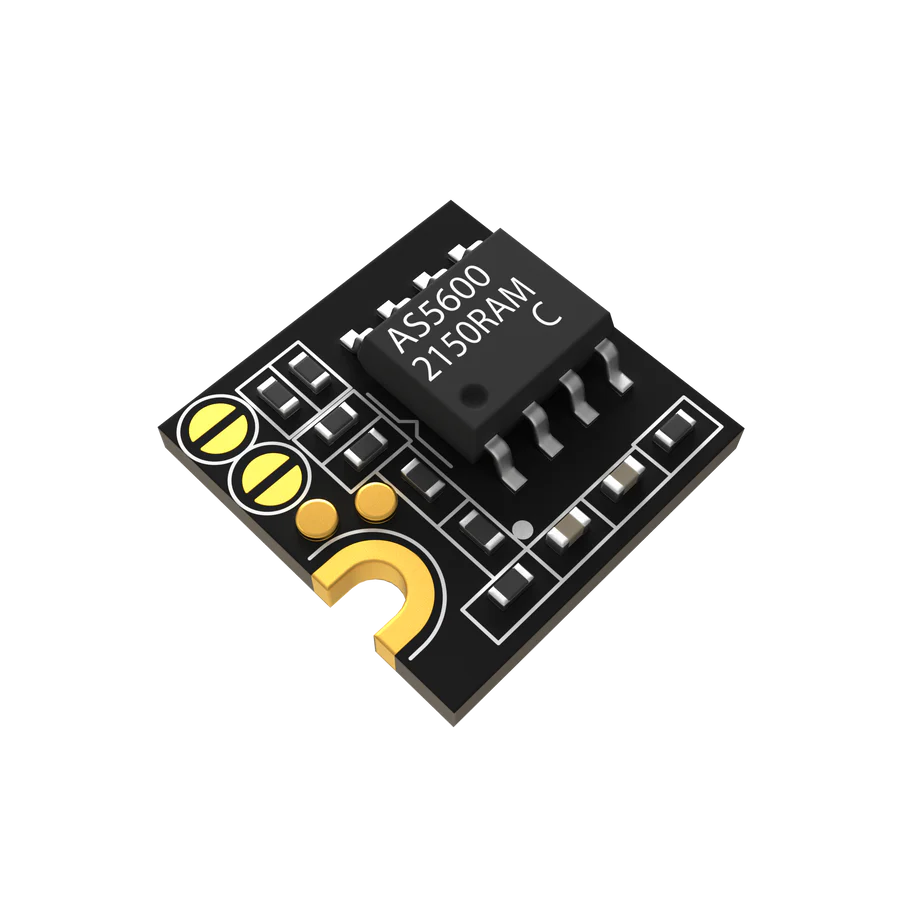

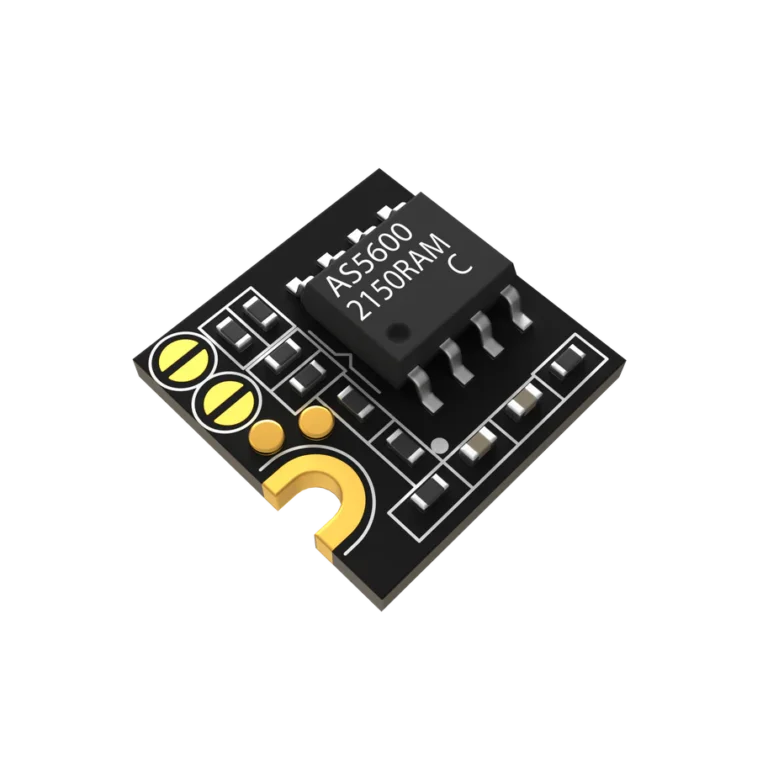

The RAK12054 Encoder Sensor, part of the WisBlock Sensor Series, uses the Osram AS5600 magnetic rotary position sensor to measure the absolute angle of a diametrically magnetized on-axis magnet without contact.

By default, it measures a full 0° to 360° range, but via the I²C interface, the start angle (zero position) and maximum angle (stop position) can be easily programmed, supporting a range from 18° to 360°.

The contactless design ensures long-lasting, maintenance-free operation. The integrated low-power mode automatically reduces energy consumption, making it well-suited for battery-powered IoT devices. The DIR input pin allows users to set the counting direction:

  • DIR connected to GND → Clockwise counting

  • DIR connected to VDD → Counterclockwise counting

Typical Applications:

  • Contactless potentiometers

  • Contactless control knobs

  • Pedal position measurement

  • RC servos

Specification Details
Module RAK12054 – Magnetic Encoder based on Osram AS5600
Chipset Osram AS5600
Measurement Method Contactless angle measurement with diametrically magnetized on-axis magnet
Resolution 12-bit analog or PWM output
Angle Range 0° to 360° (programmable from 18° to 360°)
Programmability Zero and max angle configurable via I²C interface
Special Features Automatic magnet detection, low-power mode, direction control via DIR pin
Power Supply 3.3 V
Operating Temperature -40 °C to +85 °C
Module Size 10 x 10 mm
