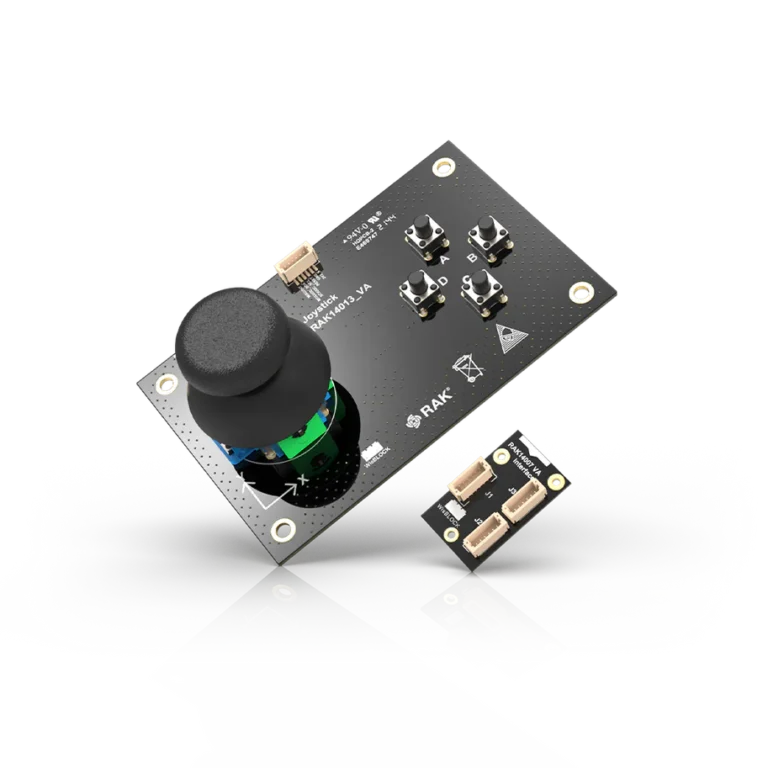

Joystick Module Atmel ATTINY441-SSU – RAK14007 + RAK14013

The RAK14007/RAK14013 joystick module consists of an interface board and a separate joystick and button module. While it looks like a video game controller, it serves as an excellent HMI control for a wide range of IoT applications using WisBlock.

SKU: 110077

8,00 €

excl. 19% VAT plus Shipping Costs

Product Description Technical Details

The RAK14007 + RAK14013 Joystick Module, part of the WisBlock Interface Series, brings an intuitive human-machine interface (HMI) solution to the WisBlock system.

  • The RAK14007 serves as the interface board, providing one standard WisBlock IO connector and an additional connector for the RAK14013 joystick and button module. With the included cable, WisBlock modules can be operated even outside the WisBlock base board.

  • The RAK14013 features a joystick and push buttons, operating via an I²C interface and powered by 3.3 V.

This module set is perfect for applications requiring manual control, such as remote device operation, smart home systems, robotics, or HMI solutions in IoT projects.

It comes complete with a rubber joystick cap and a rectangular connection cable, ensuring robust design and easy integration into WisBlock-based systems.

<

Property Specification
Chipset Atmel ATTINY441-SSU
RAK14007 Module Interface board with 1x standard WisBlock IO connector and 1x connector for RAK14013
RAK14007 Size 15 mm x 25 mm
RAK14013 Module Joystick and push buttons
RAK14013 Interface I²C
RAK14013 Size 54 mm x 85 mm
Operating Voltage 3.3 V
