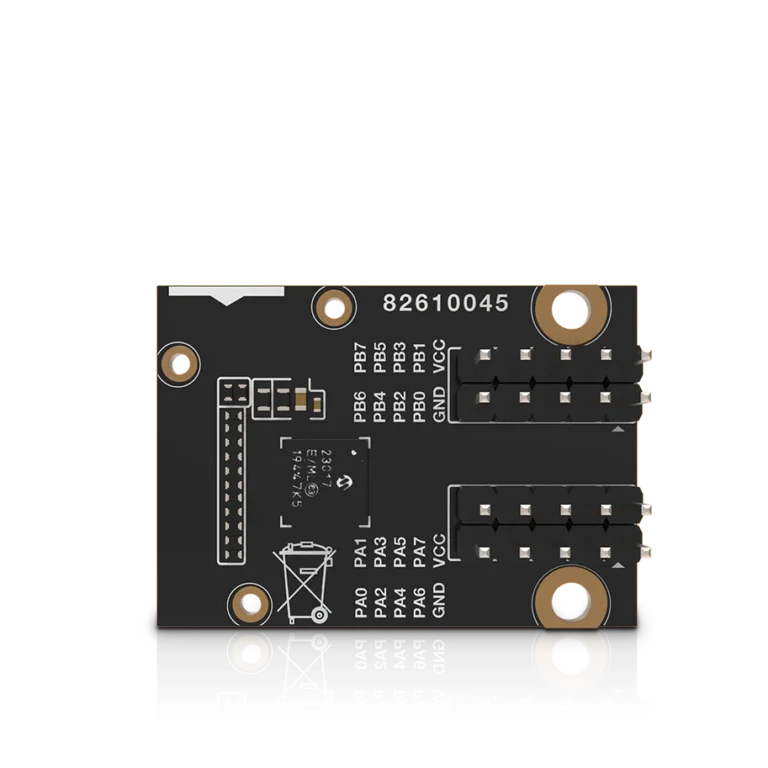

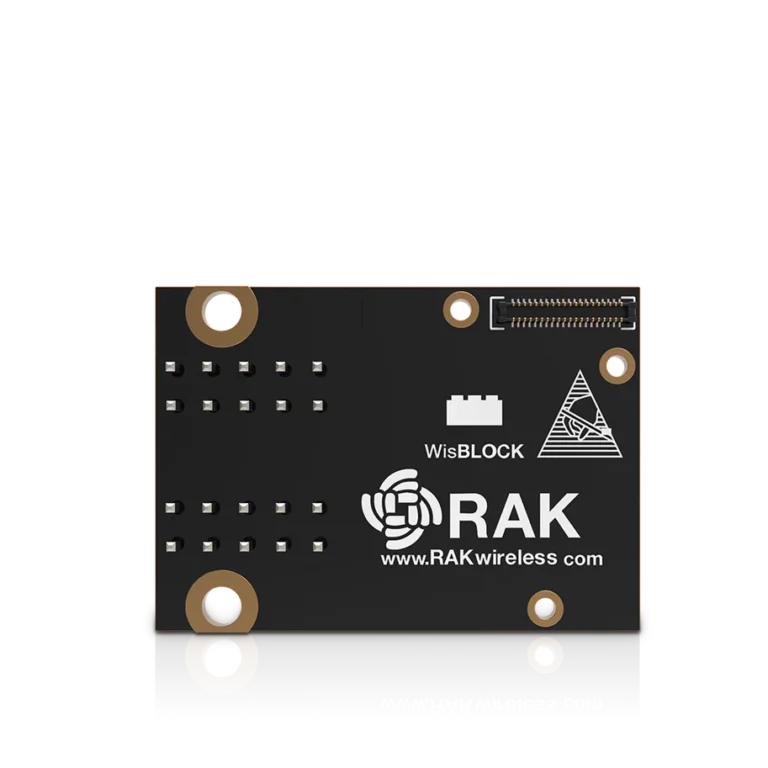

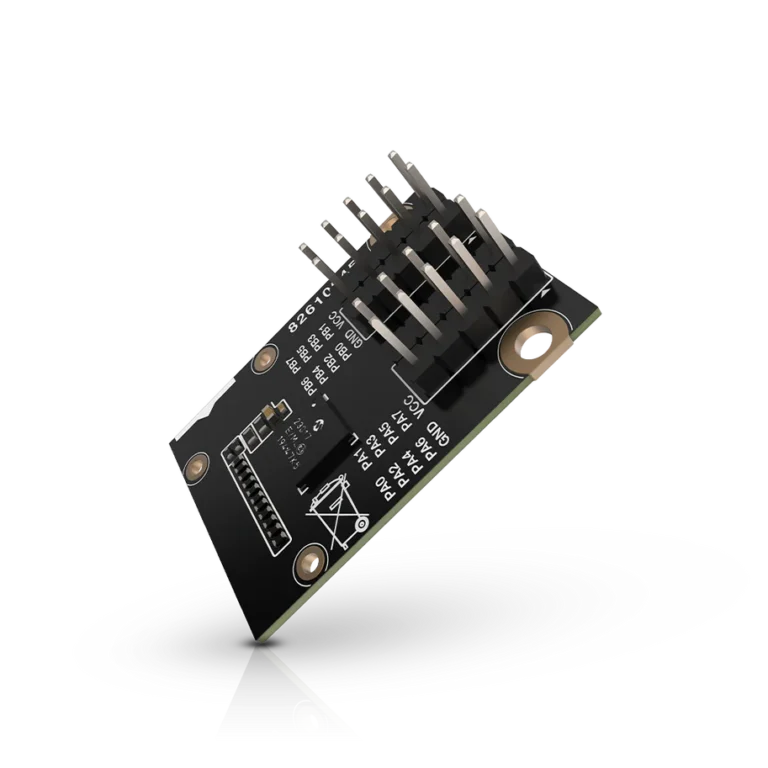

IO Expansion Module Microchip MCP23017 – RAK13003

The RAK13003 is a WisBlock IO expansion module based on the Microchip MCP23017, extending the WisBlock Core with 16 additional bidirectional IO ports. It also supports interrupt functionality when IO pins are used as inputs.

SKU: 100026

6,50 €

excl. 19% VAT plus Shipping Costs

Product Description Technical Details

The RAK13003 IO Expansion Module is a compact and efficient solution to add more digital IO capacity to your WisBlock system. Built on the Microchip MCP23017, it provides 16 bidirectional IO ports managed through an I²C interface.

It supports both standard and fast I²C modes, enabling reliable and high-speed communication. The configurable interrupt outputs (INTA and INTB) can be set to operate independently or together, offering flexible event detection for advanced applications.

Additionally, the module includes an external reset input and operates with a very low standby current of just 1 μA (max.), making it ideal for power-efficient IoT projects. Compact in design at 25 × 35 mm, it fits seamlessly into modular WisBlock setups.

Specification Details
Model RAK13003 IO Expansion Module
Chipset Microchip MCP23017
Number of IO Ports 16 Bidirectional IOs
Interface I²C (Standard and Fast Mode compatible)
Interrupt Outputs INTA and INTB, configurable independently or together
External Reset Supported
Standby Current 1 μA (max.)
Operating Voltage 2.7 V to 5.5 V
Operating Temperature -40 °C to +85 °C
Dimensions 25 × 35 mm
