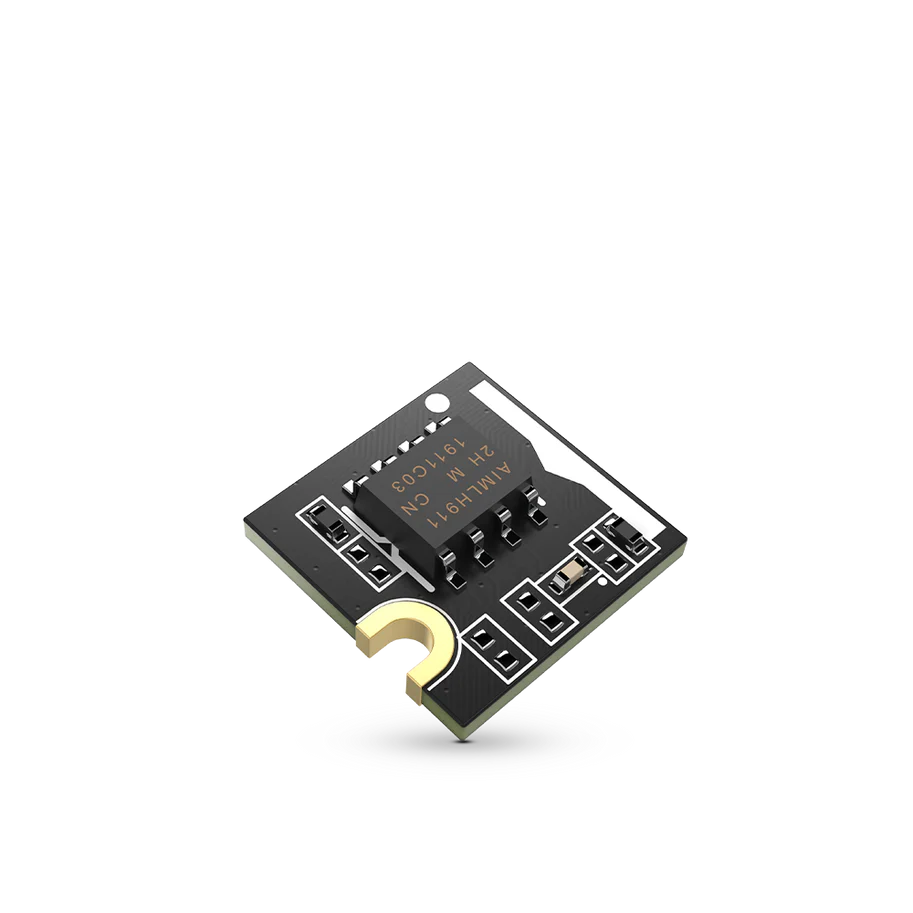

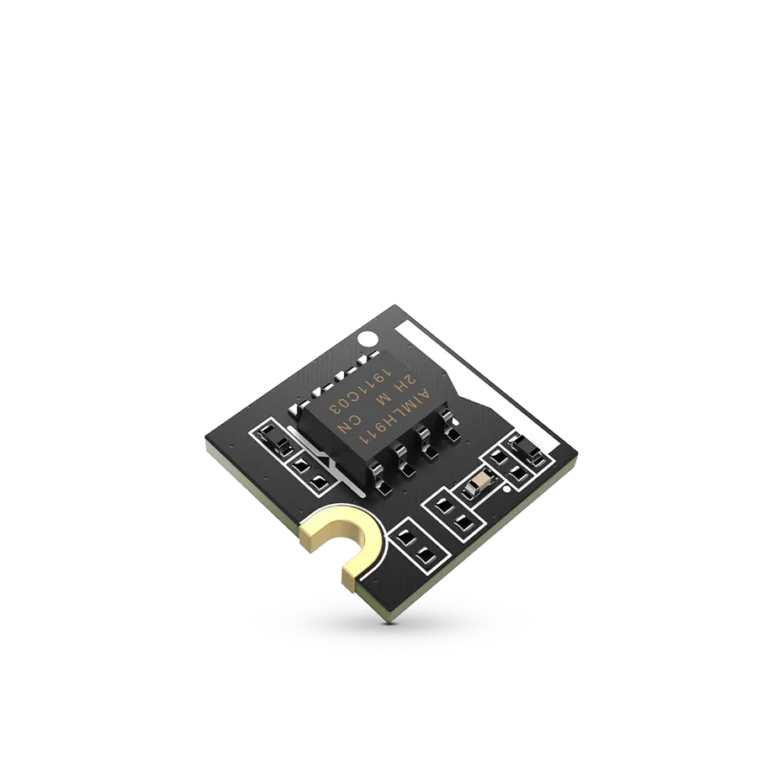

EEPROM Module Microchip AT24CM02 – RAK15000
The RAK15000 is a WisBlock EEPROM Module powered by the Microchip AT24CM02. With 2 Mbit storage capacity, an I²C interface, and an ultra-low standby current of less than 3 µA, it is perfect for long-term, battery-powered IoT applications.
12,00 €
excl. 19% VAT plus Shipping Costs
Product Description
Technical Details
The RAK15000 EEPROM Module provides a reliable and compact non-volatile memory solution for WisBlock-based projects. Featuring the Microchip AT24CM02 chip, it offers 2,097,152 bits (2 Mbit) organized as 262,144 words of 8 bits.
It supports an I²C-compatible (2-wire) interface, with both 100 kHz Standard Mode and 400 kHz Fast Mode, ensuring easy integration and fast data access. With a standby current consumption of less than 3 µA at 5.5 V, it is highly suitable for battery-powered IoT devices.
The RAK15000 is designed for high reliability, with 1,000,000 write cycles, 100-year data retention, and built-in error detection and correction. It also supports a 256-byte Page Write Mode along with random and sequential read modes.

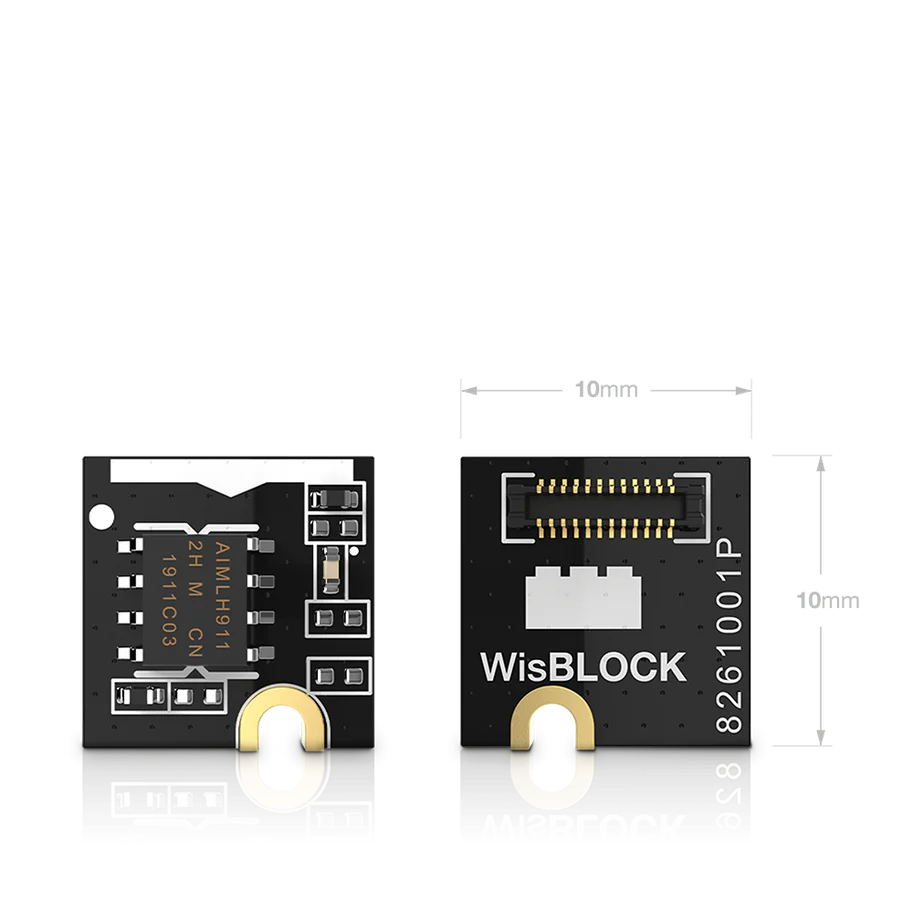

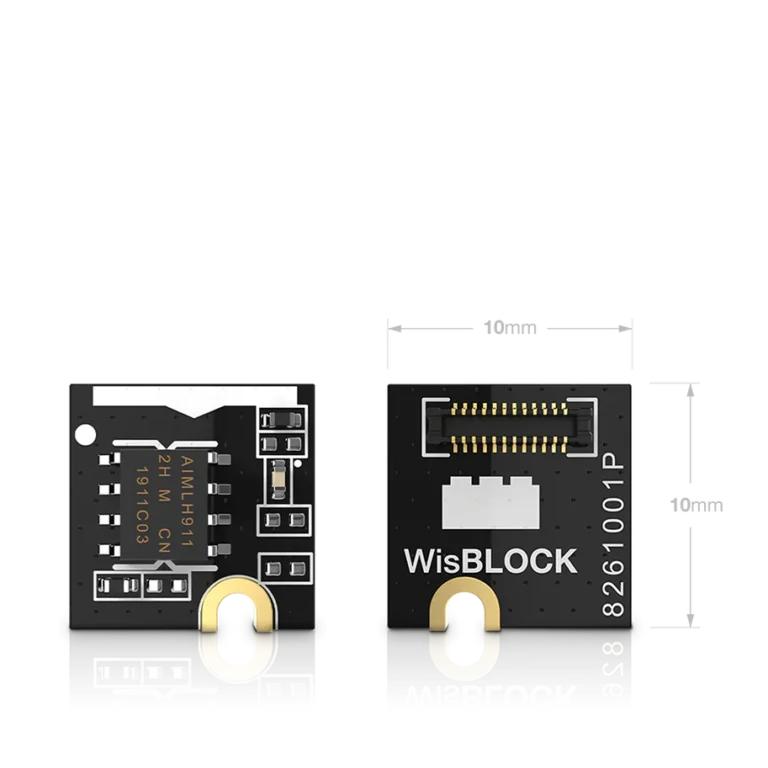

Its compact 10 × 10 mm size makes it ideal for space-constrained IoT designs requiring durable and efficient memory storage.
| Specification | Details |
|---|---|
| Model | RAK15000 EEPROM Module |
| Chipset | Microchip AT24CM02 |
| Memory Capacity | 2 Mbit (262,144 × 8 Bits) |
| Interface | I²C (2-wire), 100 kHz Standard / 400 kHz Fast Mode |
| Endurance | 1,000,000 write cycles |
| Data Retention | 100 years |
| Error Correction | Built-in error detection and correction |
| Write Mode | 256-byte Page Write |
| Read Modes | Random and Sequential Read |
| Standby Current | < 3 µA |
| Operating Temperature | -40 °C to +85 °C |
| Power Supply | 3.3 V (On/Off control by WisBlock Core) |
| Size | 10 × 10 mm |
